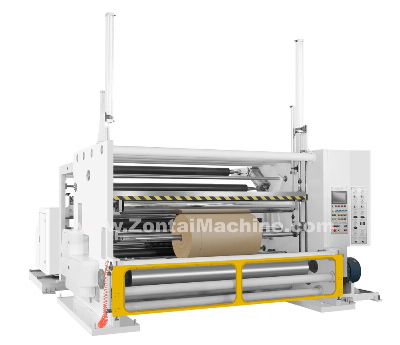

ZTM-F2500 Paper rolls high speed roll to roll slitting machineThe slitting rewinding machine is mainly used to slit Craft paper, News paper, Silicone Paper,Thermal Paper,Fluting Paper,Sublimation Paper,Glassine paper,double side coated paper, recycled paper, paper borad etc, width range from 1600-3000mm.1. Paper thickness range: (gr/m²): 40-500 g/m22. Mother roll (Unwinder rolls)Width: 1600 mm-3000mmChucks Core: 3, 4, 6, 12inchesMax diameter: 1500 mm or max. 2100mmMax Weight: 4000kg or more 3. Rewind roll (Output rolls)Air shaft Core: 3, 4 or 6inchesMax diameter: 1200 mm-1500mm4. Slitting size: Min width: 100 mmKnfifeholders: Normal circular slitting knife or Pneumatic circular knife (can be chosen)5. Working Speed: 600 m/min6. Features:Unwinder shaftless, pneumatic brake controlled (Motor controlled as optional).Guide system electromechanicalBowed roller (Banana roller) with hydraulic controlledPaper Edge blowing systemRewinder 2 drum rollers with 2 motors Automatic ejector for finished rollsHydraulic unloading system for finished rolls and loading at ground level.Optional:1, Rewinder pressure system change to hydraulic press system with proportional valve control, it can be taper press. 2, Unwinder 2 pneumatic brakes change to 2 Motors with reducers and loadcell for auto tension controlled.3, Automatic pneumatic knives moving systemMachine photos: /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
