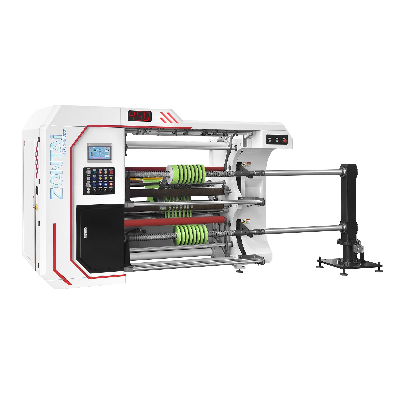

ZTM-D High Speed film rolls slitting rewinding machine min slitting 20mmUses: This machine applies to slit cellophane, PET, OPP, CPP, PE, PS, PVC, metalized film, stamping foil, aluminum foil roll, laminated film thickness range 10-150micron; all kinds film with printing and without printing of various materials, etc.Main mechanical configuration: Entire machine's controlled by PLC, man-machine interface touch screen operation. Unwind adopts Taiwan magnetic powder brake with loadcell for close-loop auto tension.Traction rollers are driven by 1 servo motor. Achieve constant linear velocity control and effectively cut off rewind and unwind tension's intervened. Rewind adopts 2PC servo motors, automatic tension is from PLC's calculating. Equipped with automatic rewind material's pushing by robot arm. Unwind lift adopts hydraulic/ pneumatic auto loading which can save much labor force and shorten time. EPC&LPC makes material's slitting edge smooth and accurate. The feature of machine is stable, security, efficient etc. Main technical parameter: Jumbo roll width1000mm/1300mm/1600mmDiameter of unwind800mm-1000mmDiameter of rewind600mmPaper core size for unwind3''and 6''Paper core size for rewind3''Slitting speed10-400m/minTolerance of EPC≤0.1mmMin. Slitting width30mmTotal power12KWWeight3800KGOverall dimension (LxWxH)2.2mx3.8mx2.1mOptional devices:1. Auto push device in rewinder parts2, Rewinder rolls with 6inch rings3, Unload discharge rack change to rotary turnable type 4. Webguide change to E+L Germany brandMachine photos: Our package photos:Zontai in exhibitions:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
