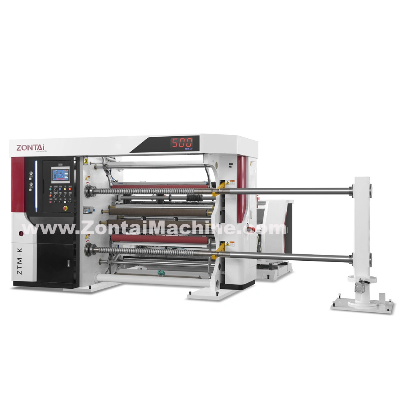

BOPP, POF, PVC Film, Wrap Around Label Film Slitting Rewinding Machine

ZTM-G 1300/1600 BOPP, POF, PVC Film, Wrap around label  Film Slitting Rewinding MachineUses:The machine applies to slit cellophane, PET, OPP, CPP, PS, PVC, PE, POF, optical materials, film roll, aluminum foil, film and paper rolls, with and without printing of various materials, from 10 ~ 500 Micron Thickness.1. Full servo motors controlled for rewinders, traction2. Unwinder uses shaftless auto loader, hydraulic loading system3. Rewinders uses Pneumatic friction shafts4. Automatic inspecting system online to check printing quality5. Max.working speed 500m/min  Parameters:Max. Width of jumbo rolls1300mm/1600mmMax.Diameter of unwinderΦ1200mm Max.Diameter of rewinderΦ600mm Diameter of Unwinder paper core 3'' and 6" Diameter of Rewinder paper core 3"  (6'' optional)Mechanical Slitting speed 10-500m/min Tolerance of EPC ≤0.1mm Min. width of rewinder rolls30mm Total power  15KW Weight7500Kg Overall dimension (L xWxH) 4.3mx4.8mx1.9m Optional devices:1. Auto push device in rewinder parts2, Rewinder rolls with 6inch rings3, Trimming rewinder machine for blowing waste film4, Unload discharge rack change to automatic type Machine photos:Our package:Zontai in exhibition:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
