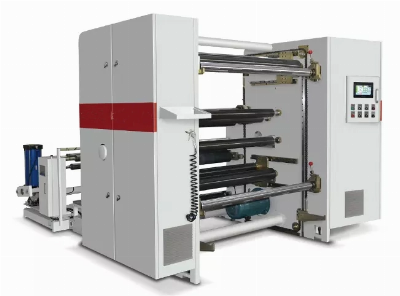

High Speed Craft Paper Jumbo Roll Slitting Rewinding Machine

High Speed Craft Paper Jumbo Roll Slitting Rewinding MachineFeatures:1. Unwind double magnetic powder brake control2. Shaftless hydraulic loading with 3 inch and 6 inch cone3. Servo control ultrasonic EPC device4. Main motor servo motor5. Center rewinding and surface rolling two rewinding type6. Rewind double air shaft, double servo motor control7. Hydraulic unloading8. Trim device9. Circular blade slitting10. Whole machine PLC control with touch screen, unwind and rewind tension automatically controlledSpecification:ModelWFQ1300WFQ1600WFQ1800Max mechanical speed      400m/minMaterial thickness30-300gsmMax slitting speed350m/minMax roll width1300mm1600mm1800mmMin slitting width30mmMax unwinding diameter1300mmMax rewinding diameter1100mmVoltage380V 50HZ or CustomizedPower22kw26kw35kwWeight3400kg3800kg4200kgDimension(LxWxH)(mm)4500*3100*19004500*3400*19004500*3600*1900mmSlitting sample:Machine details:Certification:Our company:Workshop:CNC facility:Packing and shipping:Exhibition:   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
