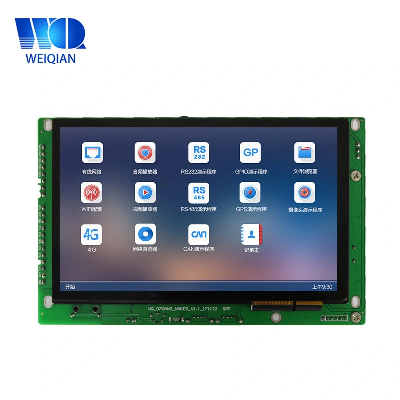

10.1 inch Industrial Tablet Computer Naked LCD display Module 10.1 inch Industrial Tablet Computer Naked LCD display Module1. Parameter Product modelWAR-101C-SN00Basic parametersCPU :Quad-core Cortex®-A7 architecture ; Frequency 1.2GHz Memory:1GB DDR3 EMMC:8GB Display screenSize:10.1 inch Resolution:800×1280 Wide-temperature type,16000k colors or 24 true colors LED backlight:lifetime > 25000 hour Touch screenCapacitance touch screen (Hardness: 1H)Hardware interface4 channel 3-wire RS-232 serial port(COM1,COM2,COM3,COM4)(2.54mm interface)1 channel RS-485(COM4)interface, multiplexing as RS-232 ( COM4 ) (2.54mm interface)1 channel USB device interface, support ADB connect to PC to exchange data and debug application.4 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.1 channel 100M Ethernet interface.1 channel SD/MMC slot, support MMC/TF card.1 channel 3.5mm audio MIC interface.1 channel 3.5mm audio HPC interface.1 channel power amplifier interface (8Ω/3w).1 channel SIM card interface .Six buttons: (1x Power, 1x Home, 2x Volume,1x User , 1x Reset ).3 channel IO input interface.(optional)1 channel CAN interface.(optional)1 channel 4G module . (optional)1 channel WIFI module .(optional)1 channel EDG3.5-3P or Round hole DC 5.5*2.1mm DC12V~24V. Power Input interface. OSAndroid 4.4.2 / Android 6.0Defend degree/Working Environmentpower:DC 12V-24V (24V as recommendation) working temperature:0~50ºC storage temperature:-10~70ºC working humidity:10~90%RH SizeNo shell Size:249x154x23.5(mm) Application areaindustrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.Support CAN bus network deployment. Software supportSupport Eclipse,Android Studio,QT Creator,Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .Easy change the user-defined splash screen. 2.Interface definiton2.1 RS-232 interface4 channel serial port,support the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1 ~ COM4.2.2 RS-485 interfaceThe corresponding port in Android system is COM4, and RS-485 (COM4 ) is a multiplexing of RS-232 (COM4).2.3 CAN Bus interfaceThe function of Can-bus interface is optional.3.Exterior sizeExterior size :249x154x23.5 (mm) Trepanning size : 232x150 (mm) Transport and Packing processExpress (UPS,DHL,Fedex,EMS,etc) is available.Sea and Air delivery is available.Delivery TimeSamples: 1-5 working days100PCS or More orders: 10-20 working daysOur service:1. We guarantee that all products have been checked and packaged in good condition before dispatch. We strive for 100% customer satisfaction on every sale we complete.2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price. 3. Whether you are not satisfied with our products and services or you have any other questions, Please contact us at first time. We will respond you at 24 hours.Warranty conditions1.All products have 1 year warranty, no artificially damaged.2.If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller's permit..FAQQ: whether your industrial panel pc support the OEM / ODM? A: Yes, our industrial panel PC support the customization with size, function, appearance, resolution, high brightness and etc. Q: Where is your panel pc / Tablet pc apply? A: Restaruant, Advertisement, Gaming, Medical Equipment, kiosk, ATM, Industrial autamation, Supermarket chain stores, industrial control,detection device,instruments and meters,security monitoring, intelligent terminals embedded high-end application,etc . Q: What is the main size for your panel pc and industrial monitor? A: 7",8", 10.1", 10.4",11.6", 12", 13.3" 15", 15.6", 17" 19" 21.5" 22" and wide screen the same zise. We also support the customized. Q: Can we printing our logo on the housing? What is MOQ? A: Except the opening logo, we can do the silk-printing LOGO in the case. MOQ is 200pcs . Q: What kind of inspection you can provide? A: Weiqian has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. Q: What is your guarantee period? A: 1 Years Quality Quarantee ! /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
