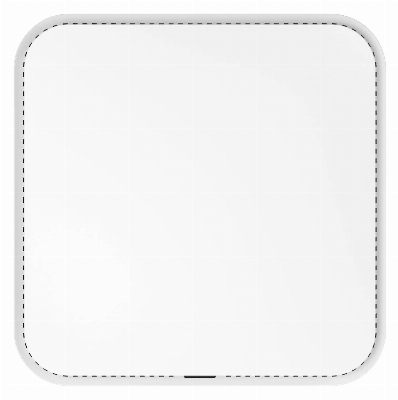

WiFi6 11ax Openwrt Wireless Access Point 3000Mbps 2.4G+5g

Description:AX830 is an 11ax Wi-Fi standard Qualcomm Chipset industrial Ceiling Wireless Access Point based on IPQ5018 chipsetCombined 3000Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2) + 5GHz (2400Mbps 2*2), equipped Gigabit WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation, faster Ethernet data rate with 128 end users, this multiple users can upload or download multiple packets in 160MHz bandwidth at the same time, narrower subcarrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.Main Features:* 11ax 2x2 MU-MIMO support, dual band with 3000Mbps data rate, allow 128+end users to access into the networking;*  Support 160MHz bandwidth, faster speed in UL and DL;*  Support Seamless roaming, TWT, OFDM...*  128+ end usersHardware SpecificationChipsetIPQ5018+6102+8337Standard802.11ax/ac/b/g/nFlashSPI NOR 8MB (1.8v) + NAND 128MBDDR3L512MB2.4G Frequency2.4GHz - 2.484GHz2.4G Wi-Fi standard802.11b/g/n/ax5.8G Frequency4.9~5.9G5.8G Wi-Fi Standard802.11 a/n/ac/axInterface1 * 10/100 /1000 RJ45 WAN Port1 * 10/100 /1000 RJ45 LAN Port1 * Reset button, press 10 seconds to revert to default settingAntennaBuild in 4*4dBi dual band MIMO AntennaData Rate3000Mbps (2.4G 600Mbps, 5.8G 2400Mbps)End Users128+2.4G RF Power≤ 20dBm5.8G RF Power≤ 19dBmDC12V----1.5APoE48V (IEEE 802.3at)LED lightSys, WAN, LANPower Consumption≤ 14WSize186*186*35.8mmFirmware SpecificationWorking ModeGateway, APWireless FunctionsMultiple SSID functions: 2.4GHz: 4; 5.8GHz: 4.Support SSID hiddenSupport seamless roaming, 802.11kvr standard.Support 5G Prior for a faster Ethernet.Wireless Security: Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, WPA3Support MAC filterSupport Wi-Fi time on/off to save energySupport client isolation to improve the wireless stabilitySupport RF power adjustable, adjust the RF power based on environment.Support user quantity limited, Max 64 users to access each band.Networking FunctionVLAN settingsCloud access support in gateway modeDevice ManagementBack-up the configurationRestore the configurationReset to factory defaultReboot the device: including time reboot or reboot immediatelyAdmin management password modifyFirmware upgradeSystem logSupport firmware GUI web management, AC controller management, remote management and cloud managementProtocolsIPv4Working Diagram/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
