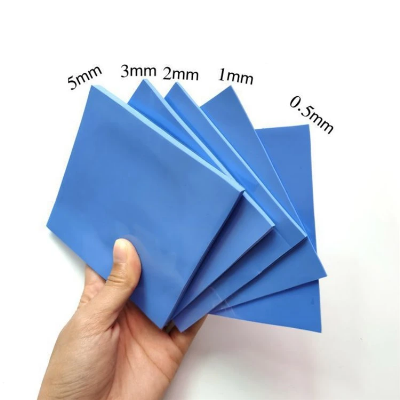

Thermal Grizzly Minus Pad 8 For Notebooks RAM VRM Gamestations Product DescriptionThermal silica padSilicone Thermal pad is specially designed for the purpose of high performance thermal conductivity. Pad standard size 400mm*200mmAccording to customer needs to cut the shapes. Basic thickness 0.3mm/0.5mm/1mm/1.5mm/2mm/3mm, special size and thickness can becustomized. The product itself is slightly viscous, if need to strengthen the adhesive can be according to customer's requirement.Product color is mass production, if need special color can be adjusted to the actual situation,please check all TDS as following:PROPERTIESUNITSAM12AM15AM20AM25AM30TEST METHODColor / White Grey White Grey Grey Orange Blue Visual Thermal impedance @1mm/20Psi ºCin2/W 0.8 0.7 0.5 0.47 0.42 ASTM D5470 Specific Gravity g/cm3 1.8 2 2.4 2.9 3 ASTM D792 Volume Resistivity ΩCM 5.0×1013Ω 5.0×1013Ω 2.6×1013Ω 1.5×1013Ω 1.0×1014Ω ASTM D257 Thermal Conductivity W/mk 1.2 1.5 2 2.5 3 ASTM D5470 Breakdown Voltage KV/mm >=10 >=10 >=10 >=10 >=9 ASTM D149 Dielectric Constant@1MHz @1MHz 5.5 5.5 6 5.5 5.6 ASTM D150 Thickness (±10%) mm 0.2~10 0.2~10 0.2~10 0.3~5.0 0.3~5.0 ASTM D374 Hardness Shore 00 35/50 35/50 35/50 35/50 35/50 ASTM D2240 Flammability class / UL94-VO UL94-VO UL94-VO UL94-VO UL94-VO UL94 Application temperature ºC -50~+200 -50~+200 -50~+200 -50~+200 -50~+200 *** Tape Choose / ∨ ∨ ∨ ∨ ∨ *** Self-adhesive / Double sided Double sided Double sided Double sided Double sided *** Fiber Strengthen / ∨ ∨ ∨ ∨ ∨ *** PROPERTIESUNITSAM40AM50AM60AM80TEST METHODColor / Brown Dark Red Light Grey Grey Visual Thermal impedance @1mm/20Psi ºCin2/W 0.36 0.21 0.2 0.15 ASTM D5470 Specific Gravity g/cm3 2.8 3 3.2 3.4 ASTM D792 Volume Resistivity ΩCM 1.0×1014Ω 1.0×1014Ω 1.0×1013Ω 1.0×1013Ω ASTM D257 Thermal Conductivity W/mk 4 5 6.5 8 ASTM D5470 Breakdown Voltage KV/mm >=9 >=10 >=10 >=8 ASTM D149 Dielectric Constant@1MHz @1MHz 5 5 5 7.5 ASTM D150 Thickness (±10%) mm 0.5 ~5.0 0.5 ~5.0 0.5 ~5.0 0.5 ~5.0 ASTM D374 Hardness Shore 00 50 55 60 70±10 ASTM D2240 Flammability class / UL94-VO UL94-VO UL94-VO UL94-VO UL94 Application temperature ºC -50~+200 -50~+200 -50~+200 -40~+150 *** Tape Choose / ∨ ∨ ∨ ∨ *** Self-adhesive / Double sided Double sided Double sided Double sided *** Fiber Strengthen / ∨ ∨ ∨ ∨ *** Typical Application of Thermal Conductive Pad Includes- Flat panel display - Handheld devices - Memory modules - PDP display Company Profile CertificationsPackaging & Shipping *The main packing of our products is ordinary packing,including plastic wrap, carton and pallet clamp. *We also can accept your request to pack the adhesive tape with custom logo and package ship to Amazon FBA,Ebay! FAQ1). Can you send me free samples ?Yes ,we can send you free samples for standard size .2). How long will it take to made our product ?Delivery time within 5~10 workingdays. 3). How to guarantee your quality?Before production, send samples for testing,after passing the test arrange production.From the production to the packaging process has QC strict inspection, so you never worry about quality.4). Can you print our logo or do special packaging?We can print custmer's logo on the tape and paper cpre and cartons.We can do any special packaging as required such as individual shrink with logo card, barcode lable, blister card or any request./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
