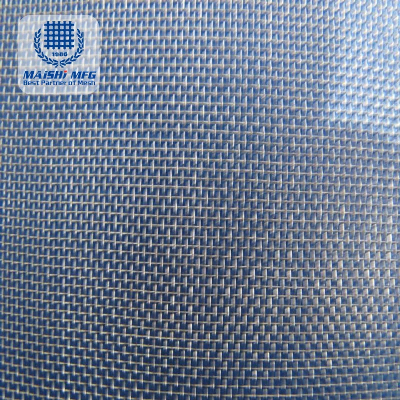

Ultra Precision Plain Twill Dutch Woven 316L Stainless Steel Net

316L stainless steel net weave method:   1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa. 2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction. 3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size. 4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size. 5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires. 316L Stainless steel woven wire mesh is the most popular woven screen in the industrial world, as well as printing materials. Please see below a list that MAISHI can produce:   [ Materials ]:   SUS : 316L [ Width ] : 0.914m, 1m, 1.22m, 1.3m, 1.4m, 1.5m, 1.6m, 2m, 3m, 4m, 6m. [ Roll Length ] : 30m,30.48m or as per your request   specification:  Normal Specification Maishi Plain Weave Stainless Steel Woven Wire Meshmesh/inchwire diameter(mm)aperture(mm)--mesh/inchwire diameter(mm)aperture(mm)2mesh1.8010.9060mesh0.150.2733mesh1.606.86670mesh0.140.2234mesh1.205.1580mesh0.120.1985mesh0.914.1790mesh0.110.1726mesh0.803.433100mesh0.100.1548mesh0.602.575120mesh0.080.13210mesh0.551.990140mesh0.070.11112mesh0.501.616150mesh0.0650.10414mesh0.451.362160mesh0.0650.09416mesh0.401.188180mesh0.0530.08818mesh0.351.060200mesh0.0530.07420mesh0.300.970250mesh0.040.06126mesh0.280.696300mesh0.0350.04930mesh0.250.596325mesh0.030.04840mesh0.210.425350mesh0.030.04250mesh0.190.318500mesh0.0250.0385  Technical Note:  1. Standard roll length: 15.24m, 30m,30.5m, 61m  2. Standard roll width:0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25')  3. Special sizes available at request  4. Packing: in waterproof paper, PVC bag, wooden case. Custom packing available at request.dutch weave Mesh per Inch (Warp x Weft)Wire Diameter (Warp x Weft)12meshx64mesh0.58mm X 0.40mm14meshx88mesh0.50mmx0.33mm24meshx110mesh0.355mm X 0.25mm30mesh X 150mesh0.23mm X 0.18mm40mesh X 200mesh0.18mm X 0.14mm50mesh X 250mesh0.14mm X 0.11mm60mesh X 300mesh0.14mm X 0.09mm70mesh X 400mesh0.12mm X 0.08mmHEBEI MAISHI dostrictly tested before the goods dispatched from our factory to ensure their quality.Make sure customers get perfect quality. Factory:Hebei Maishi Wire Mesh Manufacture Factory is one of the top manufacturers and exporters of screen printing mesh.Our company was connected with production of metal wire mesh since 1986 and monofilament polyester screen printing mesh(bolting cloth) and nylon printing meh since 1995, in China. The machinery( Width 3900mm from Switzerland Sulzer and WJ1300/1600 A, B, D)  and apparatus used in production process fully based on the high computer technology.    26 sets stainless steel high mesh count looms and 50 sets P7150 Sulzer looms. Dedicated and experienced weavers. Consistent quality products. On-time delivery.   We have 15 R&D technical staffs,with more than 10 years experience. 80% repeat customers. Reasonable claim refund system.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
