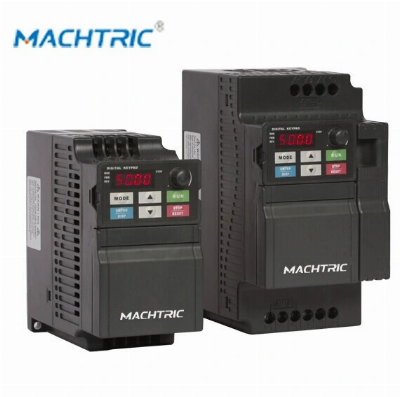

S900GS 220VAC/380VAC Variable Speed Drive for Motor VFD

S900GS 220VAC/380VAC Variable Speed Drive For Motor VFDGeneral used Compact size variable speed drive vfd   Input voltage:  220V single phase input/ Three phase input Power range: 0.4kw-37kw   Compact size design, small Appearance, easy to operate    Items S900GSPowerSupplyRated voltage, FrequencySingle phase/Three phase  220V 50/60HzVoltage Range220V:170V~240V  380V:330~440VOutputVoltage Range220V:0~220V 380V:0~380VFrequency Range0.10~400.00HzControl methodV/F control, Space vector control.IndicationOperating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/current, DC bus voltage, the temperature and so on.          Control           SpecificationsOutput Frequency Range0.10Hz~400.00HzFrequency Setting ResolutionDigital input:0.01Hz, analog input:0.1% of maximum output frequencyOutput Frequency Accuracy0.01HzV/F ControlSetting V/F curve to satisfy various load requirementsTorque ControlAuto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torqueMultifunctional lnputTerminalSix multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functionsMultifunctional OutputTerminal2 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warningsAcceleration/deceleration Time Setting0~-999.9s acceleration/deceleration time can be set individually PID ControlBuilt-in PID controlRS485Standard RS485 communication function(MODBUS)Frequency SettingAnalog input:0 to 10V,,0 to 20mA can be selected;Dig ital input: Input using the setting dial of the operation panel or RS485 or UP/DOWNMulti-speedSix multifunction input terminals, 15section speed can be setAutomatic voltage regulationAutomatic voltage regulation function can be selectedCounterBuilt -in 2group of countersProtection/ Warning FunctionOverload150%,60 second(Constant torque)Over VoltageOver voltage protection can be setUnder VoltageUnder voltage protection can be setOther ProtectionsOverheat, short circuit, over current, and parameter lock and so on     EnvironmentAmbient Temperature-10ºC to 40ºC(non-freezing)Ambient HumidityMax.95%(non-condensing)AltitudeLower than 1000mVibrationMax. 0.5GStructureCooling ModeForced air coolingProtective StructureIP20InstallationModeWall MountedPower reference  Wiring diagramPlace of Origin: Fujian, China (Mainland) Brand Name: Machtric Model Number: S900GS Output Power: 07.5kw-22kw Output Type: Triple Size: different Weight: different Input Voltage: 220V, 380V Output Voltage: 220V, 380V Type: AC-DC-AC Output Frequency: 0-400Hz Output Current: different vsd: variable speed drive input: single phase supply power: AC 220V inverter: frequency inverter IP rate: IP20 VSD color: black vfd Application: fan and pump vfd size: compact size control mode: V/F control web: machtric.en.made-in-china.com About usWe are professional manufacturer supplying with industrial automation products. with the support of our R&D, system engineering and the advantage of the abundant international resources, we have solved many problems by our engineer for different application. We would like to be one of the most popular industry Automation Solution Suppliers. We try to provide wisdom, individual product solution. Our products have been broadly applied in Textile, Packing, plastic, ceramic, Traffic, Building, Metallurgy, Chemical industry, Light industry, Military industry etc various industry equipment. We keep on promoting efficiently the competition ability of the technique, quality, service and positive take part in the project of energy program and productivity promotion in industry field. We work hard in environment protection in return for society. Contact meContact person:Maggie HuangMoblie:86-18650771915  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
