Reinforced Concrete Sawing Tool Diamond Cutting Tool for Concrete

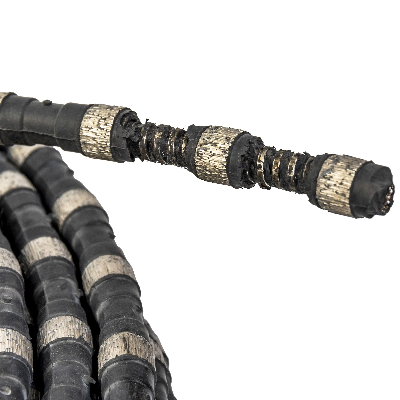

Thanks to continuous development of diamond wire technology, the wire cutting system has been widely introduced to projects of cutting particular materials like steel pipe, cast Iron and other metal materials.Our diamond wire with pre-sharpened sintered diamond beads of G635B (cobalt bond with good quality diamond from Ijin South Korea), diameter 10.5mm, 40beads per each meter, assembled with vulcanized rubber and reinforced with flat spring between beads, which achieves to average cutting speed @1.5-2.5m2 per hour with good balance of lifetime @ 2-4m2 per each linear meter wire, for all-around cutting applications of concrete and flint concrete with heavy steel reinforced in construction industry. The same above diamond wire is regularly supplied to our customers and partners from USA, United Kingdom, Germany, Sweden, Russia, Ukraine, Brazil, Chile and so on, due to the competitive quality with optimized balance between performance and cost. Our diamond wire saw with pre-sharpened sintered diamond beads of RC-900# (SOFT BOND WITH PREMIUM QUALITY DIAMOND), diameter 10.5mm, 40beads per each meter, assembled with vulcanized rubber and reinforced with flat spring between beads, achieves to average cutting speed of 0.1-0.2M2/hour, and average cutting life time of 0.8-1m2 per each meter length diamond wire.Wire Saw for Concrete/Reinforced Concrete/Steel Pipe:   APPLICATIONSArt NoSpecification (mm)Beads/MReinforcementTo be widely used for cutting concrete, reinforced concrete and steel pipeROC-C115R¢11.5×6.540Rubber+SpringROC-C110R¢11.0×6.540Rubber+SpringROC-C105R¢10.5×6.540Rubber+SpringCutting MaterialLinear Speed (M/S)Cutting Speed (M2/H)Cutting Life(M2/M)Normal Concrete25-283-53-7Reinforced Concrete22-251-31-3Steel Pipe18-200.5-10.5-1.2SPECIFICATION OF BEADSOut DiameterLength of work layer (mm)Bead LengthManufacture Tech¢11.56.511Sintered¢11.06.511Sintered¢10.56.511SinteredBelows are some applications for your kind reference: Application 1: For cutting the road base or bridge  (Concrete: C50; Density of steel 3-5%, Diameter of steel: 12mm screwed)Cutting speed: 3-5M2/HourCutting life: 4-5M2/LM Application 2: For the railway bridge (Concrete: C50; Density of Steel: >5%; Diameter of Steel: 32mm screwed, twin lines with 10cm distance)Cutting speed: 2-3M2/Hour Cutting Life: 2.5-3M2/LM Application 3: For the Highway (Concrete: C50; Density of Steel: >5%; Diameter of Steel: 25mm screwed, twin lines with 15cm distance)Cutting Speed: 2-3M2/Hour Cutting Life: 4-6M2/LMALWAYS AT YOUR SERVICE--KEENTOOL/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
