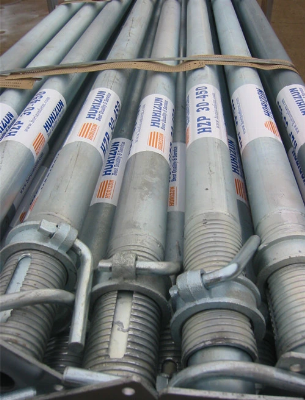

Tubular Post Shore for Slab Formwork Support

Tubular post shore for formwork supportShoring prop is an important shoring component of HORIZON formwork system, especially in the slab formwork. With the prop's high loading capacity, low weight and stability, HORIZON slab form works safely and efficiently on site as well as cost-effective. Also, the prop is fast and easy for handling on site.  The shoring props can match well with most Euro formwork systems.  Specification details: Item No. CapacityHeight (mm)Diameter (mm)Weight (kg)HZP30-30030 KN1650--300075/6020.9HZP30-35030 KN1970--350075/6023HZP30-40030 KN2210--400075/6025HZP20-30020 KN1650--300060/4815.7HZP20-35020 KN1970--350060/4816.6HZP20-45020 KN2460--450075/6028.2HZP20-50020 KN2710--500075/6030.5Advantages: 1. High quality steel tubes ensures it's high loading capacity.  2. Various finishing are available: Hot-dipped galvanization, cold galvanization, powder coating and painting.  3. Special design prevents the operator from hurting his hands between the inner and outer tube.  4. The inner tube, pin and adjustable nut are designed protected against unintentional disengagement.  5. With the same size of the plate and base plate, the prop heads are easily to insert in the inner tube and outer tube.  6. The strong pallets ensure the transportation easily and safely.  7. Following standard EN1065.  Who we are: HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.  What we offer: Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.  On-site supervising support is available on request.  Why us: With 10 years of experience, we know exactly what you need;  Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.  Prompt action on customer's requirments.  We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.  HORIZON FORMWORK, your reliable formwork partner!  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
