Small Diameter Artifical Molded Graphite Rod Manufacturer

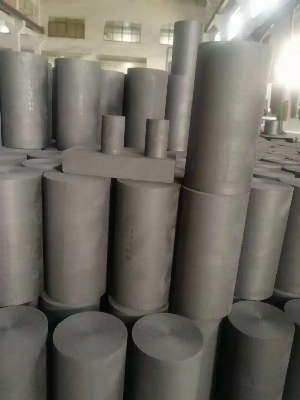

Artifical Small diameter molded Graphite Rod our graphite small rod is shaped directly from our molded graphite block, this kinds of small size graphite rod has better quality then it is made from graphite rod and the size is very suitable for graphite crucible,graphite mold and graphite machined parts factory to deep processing, it smartly save time and materials.fine grain graphite moulded block produced by cold molding are widely used in machinery, electronics, semiconductors, polycrystalline silicon, monocrystalline silicon, metallurgy, chemical, textile, electric furnaces, space technology and biological and chemical industries. The graphite has the following characteristics: Good electric conductivity and high thermal conductivity Low thermal expansion and high resistance to thermal shock. The strength increases at high temperature, and it can withstand over 3000 degrees. Stable chemical property and hard to react Self lubrication Easy to process Technical IndexTypeMSL80MSS80MSL85MSS85Grain Size (μm)25252525Bulk Density (≥g/cm3)1.81.81.851.85Compressive Strength (≥MPa)60607070Flexural Strength(≥MPa)30303535Porosity(≤%)21211818Specific Resistance(≤μΩm)12121212Ash Content(≤%)0.080.080.080.08Shore Hardness48485050  The ash content can be purified to 30ppm according to the requirement.The above index data is the standard value, not the guaranteed value.Product specificationSizeSizeSizeSizeSize(mm)(mm)(mm)(mm)(mm)φ100×250φ210×250400×200×100410×250×160510×310×200φ120×250φ250×250280×280×110450×200×150450×450×300φ130×250φ300×250320×260×120410×310×180600×500×200φ135×250φ200×400320×320×150410×310×200600×500×300φ150×250φ300×400320×320×190410×310×240800×400×200φ170×250φ400×400330×330×170510×310×150920×340×340φ180×250 380×350×200510×310×180500×400×200  φ55*125φ60*105φ60*125φ65*125φ75*160φ80*130φ80*140φ50*260φ70*13020*20*10228*28*10234*34*10212.5*12.5*150   Other sizes can be produced according to customer requirements.Artifical Small diameter molded Graphite Rod Manufacturer   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
