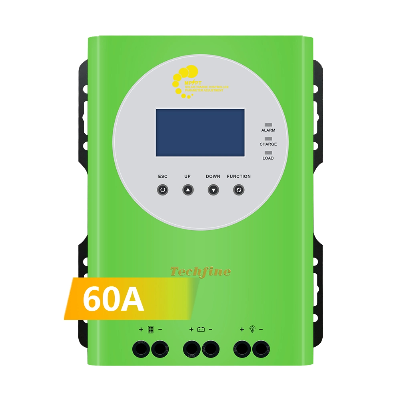

Techfine Auto Adaptive 12V 24V 48V Solar Charge Controller 60A

Product DescriptionThree-stage smart chargingAdjustable parameters by pressing buttons12V/24V/48V adaptiveWall mountingEasy to various paramenters , the operation paramenters are clear to readHigh voltage protectionOver load protectionBattery reverse connected protectionDustproofLow voltage protectionOverheating protectionOutput short-circuit protectionInsect preventionThe maximum utilization rate of solar energy can reach 99%With super fast charging algorithm, efficiency increased by 30%Product Parameters Model 40A 60A 80A 100A System voltage 12V/24V/36V/48V(Adaptive) Nominal current 40A 60A 80A 100A Charging mode MPPT maximum power point tracking Applicable battery type Lead acid battery;Gel battery;Flooded battery;Deep cycle battery Charging method Four stages: constant current charge, constant voltage charge, floating charge,equalizing charge PV input maximum open circuit voltage (VOC) DC150V System identified voltage 12V 8~16V 24V 17~30V 36V 30~42V 48V 42~64V PV input voltage 12V 17~150V 24V 30~150V 36V 41~150V 48V 53~150V Solar panel rated input power 12V 540W 800W 1040W 1300W 24V 1080W 1600W 2160W 2600W 36V 1620W 2400W 3240W 3900W 48V 2160W 3200W 4320W 5200W Product detail Company Profile /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
