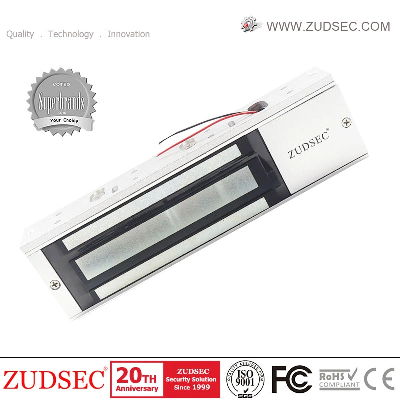

Electronic Electric Door Cabinet Strike Bolt Rim Magnetic Electromagnetic Lock

Product DescriptionMagnetic lock with Signal & Time: With door state detection signal output: NO/NC/COM, with Adjustable delay locked 0-20 seconds; 180Kgs(300Lbs) / 280kgs(600Lbs) / 350Kgs(800Lbs) / 500Kgs(1200Lbs) optional, DC12V, or DC24, Suitable for: Wooden Door,Glass Door,Metal Door,Fire Proof Door.* "S" series Lock Model: 5 wires With door state detection signal(NO/NC/COM) output function- ZDL-180S: 180Kgs(300Lbs)- ZDL-280S: 280kgs(600Lbs)- ZDL-350S: 350Kgs(800Lbs)- ZDL-500S 500Kgs(1200Lbs)* "T" Series Lock Model: 4 wires with delay setting(0-20 seconds adjustable)- ZDL-280T: 280kgs(600Lbs)- ZDL-350T: 350Kgs(800Lbs)- ZDL-500T 500Kgs(1200Lbs)* "ST" Series Lock Model: 5 wires with Signal output(NO/NC/COM) + Time Delay(0-20 seconds adjustable)- ZDL-280ST: 280kgs(600Lbs)- ZDL-350ST: 350Kgs(800Lbs)- ZDL-500ST 500Kgs(1200Lbs)Features- Holding Force: 180Kgs(300Lbs) / 280kgs(600Lbs) / 350Kgs(800Lbs) / 500Kgs(1200Lbs)- With door state detection signal output function, for applications that require real-time monitoring of entrance door switch state occasions;  NO /NC /COM, NO output when locking and unlocking the NC output- With adjustable delay locked 0-20 seconds- Bi-color LED to achieve opening and closing status display- Fail-safe type (Power to lock): Power-on to lock, Power-off to open).- Suitable for: Wooden door , Glass door ,Metal door , Fireproof door- Finishes for Shell: Anodized aluninum- Finishes for Magnetic: Zinc- Finishes for Armature: Zinc Product Parameters Specifications Voltage: 12V, or 24VDC(customizable)Power consumption: 12V/320mA; 24V/250mA(customizable) for ZDL-180/280/350                     12V/500mA; 24V/240mA for ZDL-500Surface mountedSignal output:NO /NC /COM, NO output when locking and unlocking the NC outputRed indicates the door is unlock,Green indicates the door is lockDelay setting: 0-20 seconds adjustableSurface Temp: ≤+20°COperating Temp: 10~+55°C(14-131F)Suitable Humidity:  0~90%ZDL-180:Dimension:168×38×23mm(Body); 140×33×11mm(Magnet)Packing: 22.3*8*3cm, Weight: 0.95KgsZDL-280:Dimension:250×48×27mm(Body); 183×38×12mm(Magnet)Packing size: 26.5*6.5*6cm, Weight: 1.9KgsZDL-350:Dimension:240×56×29mm(Body); 160×44×11mm(Magnet);Packing size: 26.5*6.5*6cm, Weight: 2.1KgsZDL-500:Dimension:265×73×41mm(Body), 185×62×13mm(Magnet);Packing size:  28.5*8*7.5cm, Weight: 4.3 Kgs    Related Products/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
