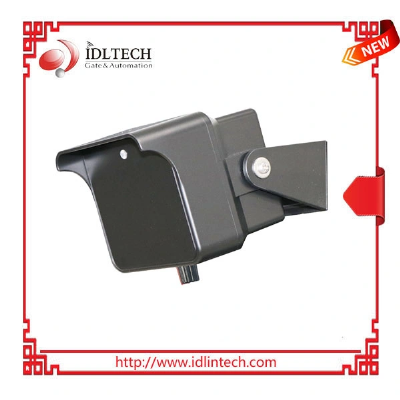

Vehicle Motion Radar Sensor for Automatic Doors

Vehicle Motion Radar Sensor for Automatic Doors/Safety Sensor for Sliding Doors/Microwave Detector to Distinguish Between Vehicles and Pedestrians1. Introduction It is a 24G millimeter-wave radar that can distinguish between pedestrians and vehicles by analyzing the characteristics of human body and vehicle movement and electromagnetic reflection characteristics. It can accurately determine the vehicle's driving direction and filter pedestrians. Users can choose one-way (toward) detection or two-way detection according to actual needs.2. Application 1) Industrial fast door control2) Automatically open the gate for incoming vehicles in the one-way entrance and exit3) Judging the vehicle's driving direction 4) Trigger function of traditional vehicle detectors3. Product Structure1) Working indicator: red for power indicator, blue for detection output; 2) Radar antenna panel; 3) Sensitivity adjustment potentiometer (1 low-9 high); 4) Mounting bracket with a special screw package.4. Working Principle  5. Technical ParameterPower Supply12-24VDCCenter Frequency24.125GHzInstallation Height2.5-5mDetection ModeOne-way detection/Two-way detectionHolding Time1sRelay OutputCOM  NO  NCWorking Temperature-40ºC to +80ºCHousing MaterialABS/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
