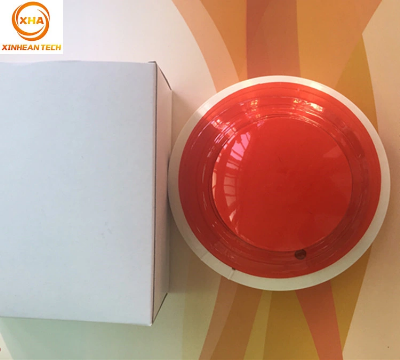

Conventional Smoke Alarm Detector for Fire Alarm System

IntroductionCA9001K photoelectric smoke fire detector adopts non-polar signal two-bus communication mode, which can be used for smoke detection in the control box of fire shutter door/fire rolling shutters, and can also be connected to the circuit of various fire alarm controllers produced by our company to realize smoke detection and early alarm monitoring functions.Parameters  Product NameConventional Smoke DetectorLoop Bus wiredNon-polarity 2 wired.Nominal VotageDC 24VWork VoltageDC12V~DC24VMonitor Current≤350uAAlarm Current≤2mALed IndicatorMonitor Status: Red led flash slowly.Alarm Status: Red led always light onOperating EnvironmentTemperature -10°C~+50°C Humidity ≤95%.Dimensions φ100mm×520mmProduct standard GB4715-2005Product RangeAddressable fire alarm systemWireless alarm systemElectrical fire monitor systemExtinguishing control systemFire door monitor systemStandalone smoke detectors and combustible gas detector4-wire smoke detectors with relay output.Service1. OEM &ODM service.2. Provide technical support and after-sale service.3. 1 year warranty.4. Normally 15 working days lead time.5. Welcome sample order./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
