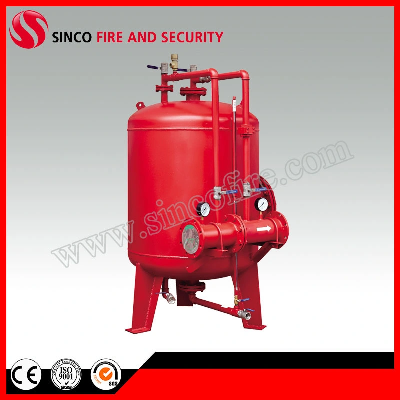

Fire Fighting System Used Foam Bladder Tank

Fire Fighting System used foam bladder tankIntroductionFoam bladder tank, together with ratio controllers, form a balanced pressure proportioning system used to mix water and fire fighting foam together to generate an effective extinguishing medium.The bladder tank technology is a mixing method allows the water/foam ratio to remain stable by automatically adjusting to the variable flow rates and pressure conditions that may occur during system operation.This feature makes bladder tanks particularly suitable for multiple hazard systems, sprinkler systems and any other system operating under variable, non predictable, flow and pressure conditions.FunctionThe bladder tank is a carbon steel pressure vessel containing an elastomeric separation bladder between the water and foam concentrate. The bladder permits water pressure to be transferred to the foam concentrate without the two fluids mixing together. A ratio controller generates a water pressure drop by means of a reduced cross section where the water stream passes through it. As the foam concentrate pressure is higher than the pressure at the ratio controller, the foam starts flowing towards the water and mixing at a calibrated rate, which is dependant on the water flow rate.SpecificationModel No.PHY4PHY8PHY16PH24PHY32PHY40PHY64PHY72Diameter(mm)506580100100150150150Mixing Ratio3% or 6%Rated Working Pressure1.2 MpaWorking Pressure Range0.3~1.2Rated Flow(L/s)48162432406472Flow Range(L/s)1~42~83~164~248~3212~4015~6417~72Pressure Drop(Mpa)≤0.2PhotoesOther Fire fighting equipment  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
