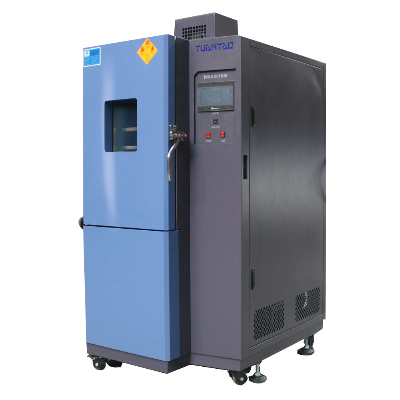

Linear/nonlinear rapid rate temperature chamber rapid temperature cycleApplication:It is suitable for testing various performance indicators of aerospace products, information electronic instruments, materials, electrical engineering, electronic products, and various electronic components under the condition of rapid temperature changes.Test standard: GB/T2423.1-2001, GB/T2423.2-2001, GB/T2423.4-2001, etc.Features:1. Touch screen controller, support multiple languages2. Temperature change rate is optional3. Can support computer operation and real-time monitoring4. Heating, cooling, humidification, dehumidification independent, unique BTHC balance temperature and humidity regulation methodSpecification:modelYICT-225YICT-306YICT-408YICT-800YICT-1000Inner chamber size WxHxD(cm)60*75*5060*85*6080*85*60100*100*80100*100*100External chamber size WxHxD(cm)depending on inner box sizeTemperature range-70ºC~150ºC(KS);-40ºC~150ºC(KL);-20ºC~150ºC(KR)Rapid rate temperature range-55ºC~+85ºC;-40ºC~+80ºC;-20ºC~+80ºC;0ºC~+80ºC;-60ºC~+80ºCtemperature ramp rate3ºC/min,5ºC/min,8ºC/min,10ºC/min,15ºC/min(linear or non-linear)customization is availableTemperature fluctuation±0.5ºCTemperature uniformity±1.5ºC(empty loading after stablize for 30 mins)Resolution0.01ºCInternal chamber materialSUS#304 stainless steelExterior chamber materialcool rolled plate+powder coatingInsulation materialPU+fiberglass woolcirculatory systemcentrifugal fan air circulation systemHeating systemSUS#stainless steel high-speed heaterControl Systemtouch screen controllerCooling SystemCompressor + finned evaporator + air/(water cooling systemOther omponentsVacuum glass observation windowtest hole(50mm)control status indicatorview lightshelf(2 feeely adjustable)safety protectionoverheating circuit breakerCompressor overload protectionControl system overload protectionoverload indicator lightPhase sequence protectionHigh voltage and low voltage protectionOver temperature protectionFan overcurrent protectionPower supplyAC3Ψ380V 60/50HzCustomized serviceNon-standard or special requirements are all welcomeIn addition to rapid temperature change test chamber, we are also manufacturing:Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester,Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester, ect.Other styles with different configurations are also avaiable upon request, welcome to enquire and contact us anytime! Company profile/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
