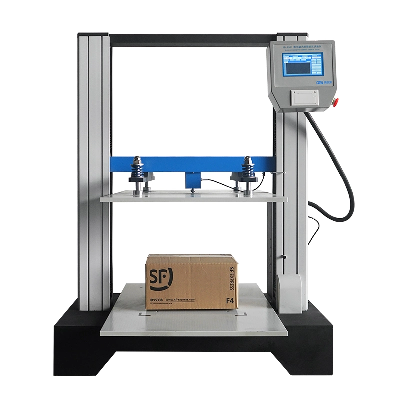

Microcomputer Control Corrugated Carton Paper Box Compression Testing Machine

Microcomputer Control Corrugated Carton Paper Box Compression Testing MachineUsage:PLC(programmable logic controller) Compression Test Machine For Package Test is used for measuring the pressure strength of boxes,cartons, packaging containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Also it can do hold pressure stacking test ,It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.Design Criteria: TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16,GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4 The Main Parameters:ItemDescriptionMax. Force1000KGLoad cell1 load cellControl systemPLC controlMotorAC motor, guild rodForce readingkgf, Ibf, N etcLoad cell Resolution1/100,000Load Precisionwithin ±0.5%Parallelism of PlatensParallel within ±5mmEffective test area700×900×900mmTest speed10 ±3mm/minReport outputMini-printer, thermal printingData displayLoad, displacement, speedSafety featuresE-StopOver-load protectionUpper and lower limit switches (The table parameters for the company Standard Model parameters, we support customer customization parameters)Product DetailAbout HAIDAHaida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.Packaging & Shipping:Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.After-service:If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
