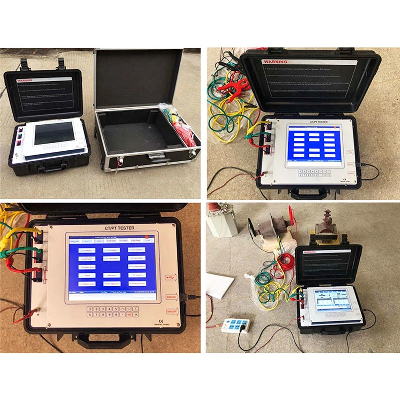

GDVA-405 Automatic CT PT Analyzer CT Meter Transformer CVT Test Machine Product Description The CT PT Analyzer is an advanced and state-of-the-art professional instrument specifically engineered to provide comprehensive testing and analysis capabilities for current transformers (CTs) and potential transformers (PTs). With its cutting-edge technology and precise measurement capabilities, this instrument plays a crucial role in the industry by facilitating accurate assessment and evaluation of transformer performance.Built with the latest advancements in testing equipment, the CT PT Analyzer offers a wide range of features and functionalities that enable thorough examination of CTs and PTs. It is designed to meet the stringent requirements of the industry, ensuring reliable and accurate results. Test ItemsEquipment Description:Tests for Current TransformerTests for Potencial Transformer1 Excitation curve and parameters test2 Turns ratio test3 Ratio and phase error test4 Polarity mark check5 Winding resistance measurement6 Secondary loop burden measurement7 Error line curve test for protection CT8 Transient CT parameters test9 CT nameplate guess10 Saturation hysteresis loop curve measurement1 Turns ratio test2 Ratio error and phase angle error test3 Polarity test4 Secondary burden test5 Winding resistance testApplications of CT/ PT Analyzer: 1 CT nameplate check2 CT parameters check in work burden3 CT transient parameters analysis4 CT ratio and phase error calibration5 PT routine testTechnical ParameterTechnical Parameter1.Test standards: IEC60044-1, IEC60044-6, IEC60044-2, IEC61869,IEC60044-5, C57.132.Power supply: AC220V±10%, 50/60Hz±10%3.Voltage output: 0.1~180V (AC)4.Current output: 0.001~5A(RMS)5.Power output: 500VA6.Maximum knee voltage measurement: 45KV7.Current measurement: Range: 0~10A (automatically change range in 0.1/0.4/2/10A) Error:
