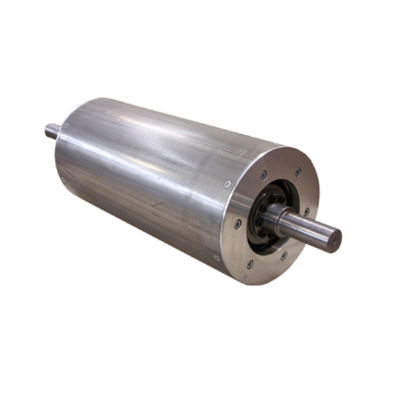

Magnetic Head Pulley Drum Magnets Separator

Magnetic Pulley, Magnetic Head Pulley, Drum separator, Drum Magnets  Magnetic Head Pulley Drum Magnets SeparatorSimple exchange from the head pulley to magnetic pulley will transform a conveyer to separator of iron particles from the raw material. It's the No.1 item for food processing factories, chemicals, minerals and to recycling facilities. The drums is mounted at the outlet of the carrier or directly above a vibrationary feed. High intensity rare earth magnets are mounted in a wear-resistant stainless steel drum. The shell of the drum is supported by high-quality sealed bearings that provide reliable and smooth rotation around the magnetic element.Features1. Selection of vertical and horizontal pole.2. Available Samarium Cobalt magnet type for high temp. application.3. Available custom made of pulley shaft and pole.Specifications1. Standard (FM): Vertical 2,000 gauss, Horizontal 1,000 gauss (pulley surface)2. High intensity magnetic power type (ND): horizontal 3,000/5,000 gauss (pulley surface)3. Pulley OD: Φ215~Φ4004. Available custom made on pulley length and shaft sizeApplication for These economical Magnetic Separation Pulleys:Magnetic Separation Head Pulleys continuously remove and discharge tramp metal from the product flow for both product purification and materials separation.These pulleys offer superior removal of ferrous contamination such as nails, spikes, nuts, bolts, cans, and wire for conveyors in the paper, wood, plastic, steel, fire and municipal recycling industries with the maintenance-free operation.They can also be used for continuous separation of ferrous from non-ferrous steels in scrap metal recovery separation for metal stamping facilities.It can be widely used in the fields like metallurgy, ceramics, grinding material, nonmetal mineral, foodstuff, chemical industry, and building material. Drum Magnets / Magnetic Pulley Head roller magnets for conveyor belt/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
