Loop Box Precast Concrete Fixing System for Precast Wall

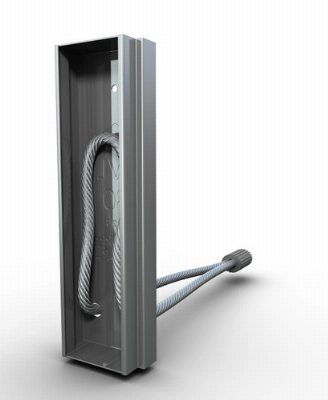

Description:They can transmit forces in all three directions on the joint and consist of a solid steel box suitable for building applications, including a folded, flexible wire rope connecting ring. Wall joints can be manufactured cost-effectively, easily and safely.Connecting Loop consists of a recess box that anchors itself to concrete well thanks to its stepped side form, and a wire, which together with the box forms are a load-bearing structure. Specification:Size(mm)Plastic buckle colorbiadLSL 8022025321280Black80220253212100Black80220253212120BlackThe Main Advantages:• High-strength galvanized coil• Pre-punched nail holes for easy attachment to the template• for structural connections between prefabricated sections• Loop pop-up automatically ensures time saving; no need to re-bend• Ideal for wall-to-wall and wall-to-column dockingHow to use:The connector loop box is a single-wire loop used to connect or connect prefabricated wall panels to each other. The connector loop box makes wall installation easy: just open the lid and bend the loop to the operating position.The quality and safety is one of the most important topics for us. So we check our products strictly. For raw material, we not only do the dimensional inspection, but also load tests. During the production, the quality department will test our products constantly. All tests are executed according to German standards. GME ensures that every product has the required application and security needs. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
