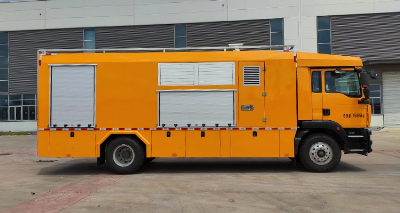

Sinotruk 4X2 Large Flow Flood Control Drainage Vehicle

Large flow flood control drainage vehicle 4000 m3 drainage rescue vehicle flood control drainage vehiclePure electric portable drainage pump, equipped with 200kw silent generator set, 8 portable water pumps, can reach 4000 m3/h flow discharge, easy to operate, support the use of generator or mains power, fast plug, visual frequency conversion control cabinet, can monitor the operating parameters in real time, with leakage, current overload, phase loss, overvoltage, undervoltage, overfrequency, underfrequency, motor overheating and other protection;Functions and Features1. Vehicle transportation functionThe vehicle has an overall length of 8.5 meters, a width of 2.5 meters, and a height of 3.2-3.6 meters. It is a national standard vehicle with a yellow plate and a special chassis for special vehicles;2. Lighting functionInstall 15W lighting inside the carriage to ensure vehicle operation and lighting at night;3. Warning light alarm functionInstall a long row of alarm lights and flashing lights on the roof to provide warning and shouting functions for rescue channels and the scene;4. Electrical functionsMultifunctional electrical control cabinet, equipped with power input, output, switches, etc;External power interface, optional installation of 30 meter cable reel;5. Skirt step functionThe left and right side protection of the vehicle adopts independently developed and innovative patented skirt structure design, which can protect or flip as a step, and can carry a weight of 150kg, making it easy to access and place various equipment;6. Device loading functionThe equipment rack and cabinet inside the compartment are designed and manufactured using aluminum profiles, and the cabinet structure can be personalized and freely arranged according to customer requirements;Special fixing device for equipment, firmly and reliably fixed;The two sides and rear adopt advanced aluminum alloy rolling shutter door structures for fire trucks, making the equipment quick and convenient to access and place;The tail is equipped with a hydraulic tailboard structure, which makes loading and unloading convenient, time-saving, and labor-saving;7. Security systemElectrical earthing system, lightning protection system, reversing monitoring navigation, fire extinguisher, safety helmet, medical first-aid kit, toolbox, etc8. Professional customization functionProfessional rescue equipment can be customized according to user needs; Meet various rescue function requirements9. Multifunctional cabinThe multi-functional control room adopts high-end business vehicle decoration design, equipped with office desks and chairs; It improves the comfort of passengers and can achieve various functions such as control, real-time command, and rest.  ModelFZB5130XXHZS6Chassis modelZZ5206N471GF5Emission standardEuro 2Fuel typeDieselTotal weight13000(kg)Mass weight12610(kg)Max speed110 (km/h)Approaching/departure16/12(°):Front/rear suspension1450/2370(mm)Front passenger2+4()Number of spring plates3/3+2Axle load4550/8450Tyre number6Tyre specification11.00R20Axle number2Wheelbase4700(mm)Whole dimension(mm)8520×2500×3290Body dimension(mm):5450*2400*1850Engine manufacturerEngine model:Engine displacement(ml):Engine power(kw):SINOTRUKMC07.31-609500228/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
