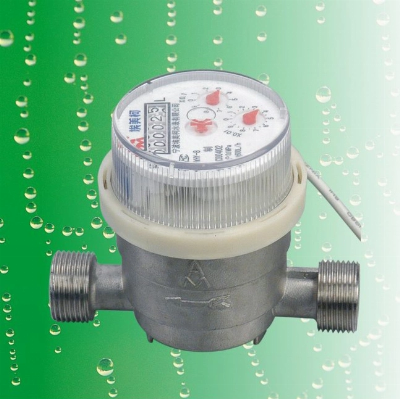

DN8mm Horizontal Volumetric Rotary-Piston Cold Water Meter

Product DescriptionFeature:*Adopting volumetric rotary piston structure to record the water volume through the pipe.*Vacuum sealed counter to keep a clear reading in long-time.*Small star-up flow rate, high precision, reliable performance.*High quality materials comply with hygienic standard of potable water Stainless steel body with a nice appearance.*Adopting magnetic transmission counter with stable performance and high reliability.*An electrical signal will be sent after every 1 or 0.1 liter water flowing through the pipe.*Hot water meter and remote reading transmission system for option.Maximum Permissible Error:*In the lower zone from Qmin Inclusive up to but excluding Qt is±5%.*In the upper zone from Qt inclusive up to and including Qs is±2%.Working Condition:*Cold water: 0ºC≤t≤40ºC.*Pressure: ≤1.6Mpa.Installation:*The water meter must be horizontally installed, with the reading surface upwards and the direction of the arrow being the same as the direction of the water flow.*The pipeline must be flushed before installing the water meter.*The water meter must be installed in a dry and easy to maintain environment, install in a dedicated water meter box is recommended.*Valves must be installed at the inlet and outlet of the water meter. Signal Sending LeadType/ColorRed (Brown)BlueBlack (Yellow)2-wire Send messageSend message3-wire reed switch dual signal sendingSend messageSend messagePublic terminal3-wire reed switch anti theft Send messageAnti theftPublic terminalHall componentPower supplySignalEarthFactory OverviewCertificationsBrief Introduction /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
