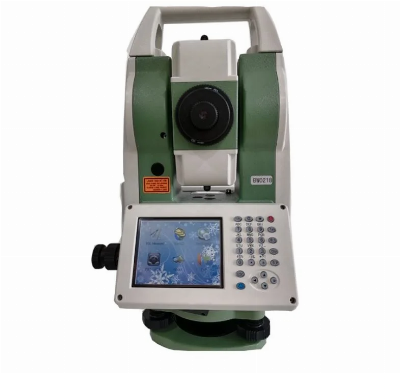

Survey Equipment China Total Station Instrument Foif Rts352

 Product Feature Compact design with   Windows CE 7.0 operating system  3.5" colour TFT LCD (320 x 240 dots) touch screen, transflective sunlight readable display   Professional onboard software: FOIF Fieldgenius,FOIF Survey or Carlson SurvCE   Long reflectorless measuring distance reaches to 1000m  Illuminated keyboard with light sensor, turn on in dark surroundings automatically  Multiple data interfaces,USB host, USB slave, RS-232C or Bluetooth connections are available   Smart battery managing system, display battery life in real-time   Guide light system for fast stake out measurement  Detailed PhotosProduct Parameters   Technical dataTelescopeLength/Image156mm/ErectObjective apertureφ45mmMagnification30XField of view1°30'Shortest focus distance1.0mAngle measurementReading systemAbsolute encoderAngle unit360°/400gon/6400mil, selectableDisplay resolution0.1″/0.5″/1″(or 0.02mgon/0.1mgon/0.2mgon)Accuracy2"Distance measurement(R600) Display resolution(m/inch selectable)0.1mm/1mmLaser class Prism Class 1Reflectorless/Reflective sheetClass 3RMeasurement range (Good condition )Reflectorless1 to 600mReflective sheet/RP601 to 800mSingle prism1 to 5000mAccuracyPrism2mm+2ppmReflective sheet/RP603mm+2ppmReflectorless1-150m:3mm+2ppm;>300m:10mm+5ppm150-300m:5mm+3ppm;Measuring timeInitial:2sPrismtyp.1.0-1.5sReflective sheet/RP60typ.1.5sReflectorlesstyp.1.5-5s, max. 20sDistance measurement(R1000)Laser classPrism standard mode/Prism long modeClass1/Class 2Reflective sheetClass 2Reflectorless standard modeClass 2Reflectorless long modeClass 3RMeasurement range (Good condition)Single prism1 to 5000mReflective sheet/RP601 to 800mReflectorless1 to 1000mAccuracyPrism2mm+2ppmReflective sheet/RP603mm+2ppmReflectorless1-150m: 3mm+2ppm ;150-300m: 5mm+3ppm;300-500m:10mm+5ppm;>500m: 20mm+10ppm ;Level vial sensitivityPlate level vial30″/2mmCircular level vial8′/2mmCompensatorDual axis compensatorWorking range±3′Setting accuracy1″Laser plummet(Standard)Accuracy±1.0mm/1.5mLaser classClass 2/IEC60825-1Laser brightnessAdjustableLaser wave length635nmOptical plummet(Factory optional)Accuracy±0.8mm/1.5mImageErectMagnification3 xFocus range0.5m to ∞Display3.5" colour TFT LCD (320 x 240 dots) touch screentransflective sunlight readable displayPowerBattery3400mAh Li-ion RechargeableOutput voltage7.4V DCContinuous operation time(Single distance measurement every 30 seconds)8 hoursChargerFDJ6-LI(100V /240V )Charging time(at +20ºC)Approx. 4 hoursApplication programsData collection/Stake out/Resection/REM/MLM/Point to lineAREA/Z coordinate/OFFset/3D Road/Traverse adjustmentTape measurement/section/Axis positioning measurementOthersCPUARM Cortex A8Memory4GB internal memorySensorsBuilt-in temperature and pressure sensorsKeyboardAlphanumerical illuminated key board, both sidesGuide Light System Factory optionalWeight(including batteries)5.5kgDimensions(WxDxH)185x220x360mmOperating temperature-20ºC to +50ºCStorage temperature-40ºC to +70ºCInterfaceUSB host/USB slave/RS-232C/Bluetooth(Optional)Water and dust protectionIP55(IEC60529)Data transfer&processing softwareFOIF Geomatics Office(FGO)Data collectorData collectorF58, fully rugged PDA(Optional)Packaging & Shipping    Company ProfileOur service 1. Any inquiries will replied within 12 hours.2.We can provide advanced production equipment.3. All products will have been strictly quality checked in factory before sending out.4. All our products have one year warranty. And we sure the products will be for maintenance within warranty period.5. We can make timely deliveries and arrange urgent needs.6. We have good after-sale service./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
