Bidirectional DC Energy Meter for EV Charging Pile Station

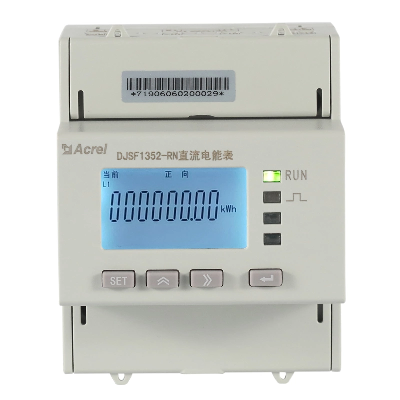

Product DescriptionDJSF1352-RN din rail bidirectional dc energy power meter for EV charging pile stationDJSF1352-RN din rail DC power meter with dual channel DC input is suitable for telecommunications base stations,dc charging piles,solar PV and other applications.It can measure voltage,current,power,forward and reverse energy and so on in DC system.It can also measure total power and energy within a period of time.   It is with RS485 modbus rtu,infared functions and multi-tariff functions.  It is with relay alarm output and digital input functions.Functions and parameters  Main functions of DJSF1352-RN• Measuring dual channel dc voltage,current,power,reverse and forward energy (FWH and BWH)• Max voltage input 1000v,current input by connecting shunt 75mv or hall effect current sensor(0-5v);•Auxliary power supply:DC20-60V AC80-270V DC110-350V DC18-30V and so on•Communication:RS485-Modbus(C)*Functions:multi tariff energy,infared function and dual channel measuring*Optional functionspower module:P1-DC 24V,48V2DI/DO(K)Dual dc input channel(D)Data sheet for dc energy meter DJSF1352-RN  Model DJSF1352-RN Input Input DC voltage range DC 0~1000V Input DC current 75mv shunt or hall current sensor(0-20mA,4-20mA,0-5V,0-10V) Power consumption Voltage: ≤0.2VA, current ≤0.1VA≤2VA Overload 1.2 times sustainable work, 2times lasts a second Function Display 8-bit segment LCD Communication RS485 Modbus RTU,infared switch switch input 2 Relay outputs, 2A/30VDC or 2A/250VAC switch output 2 dry contact inputs Pulse output 1 second pulse output and another energy pulse output Optional function Dual channel dc input(D) Power module(DC24v or 48v)P1 Digital input and output(K) Power supply AC/DC 85-265V or DC24V(±10%) or DC48V(±10%) Dimensions and WiringsPayment and delivery1. Payment:100% TT in advance,credit card and western union. For large amount, we can accept terms T/T 30% in advance as depositand balance 70% before delivery.2. Delivery:in 3-10 working days after payment received.3. Delivery ways:By sea,air,train or international courier like Fedex,TNT,DHL and so on.About ACRELChina manufacturer with over 18 years experience in energy meters  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
