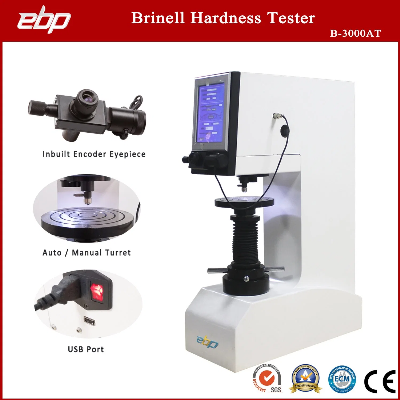

Automatic Digital Brinell Hardness Tester for Metal Hardness Testing

Product DescriptionBHN HBW Automatic Digital Brinell Hardness Tester B-3000ATFeatures:1. Large test force range: 62.5Kgf to 3000Kgf 2. With 12 kinds of measurement scale3. Closed-loop control, with high accuracy load cell, no need installs weights, easy installation and calibration.4. Measuring indentation automatically, no need to focus5.Hardness value display on screen, and with hardness conversion function6. Test force with automatic calibration function, load automatic corrected, much more accuracy7. Hardness value automatic corrected according to different hardness block8. Large test space: 135*200mm (Depth * Height)9. Touch screen interface, menu structure interface, more information display10. Save more samples and test information11. Support to set a password for protection12. With USB interface, test data can save to U-flash as EXCEL format, easy edit and process13. Modular design, easy maintenance14. Support upgrade to full automatic Brinell hardness testerApplication range:Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.Technical Specifications:ModelB-3000ATB-3000MTTurretAutomatic turretManual turretBrinell ScaleHBW2.5/62.5  HBW2.5/187.5   HBW5/62.5  HBW5/125    HBW5/250  HBW5/750    HBW10/100  HBW10/1500  HBW10/1000   HBW10/250   HBW10/500   HBW10/3000Load Kgf(N)62.5 (612.9), 100 (980.7), 125 (1226), 187.5 (1839), 250 (2452), 500 (4903), 750 (7355), 1000 (8907), 1500 (14710), 3000 (29420) Load accuracy0.1%. Better than normal Brinell hardness tester 1% (above 1000Kgf)microscope magnification20X (option: 10X, 15X, 30X)Min measuring unit0.625µm ( option:0.3125µm)Dwell time5-60sHardness range8-650HBWData outputLCD display, USB interface saved in USB flash disk (save in Excel format)Executive StandardISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2Test space200*135mm (H*D)Power supplyAC220+5%,50~60HzOverall Dimension550*210*750mmNet weightAbout 90kgStandard Accessories: ItemQuantityItemQuantityMeasuring microscope 20X1Diameter 2.5mm Hard alloy indenter1Accessories box1Diameter 5mm Hard alloy indenter1Anti dust cover1Diameter 10mm Hard alloy indenter1V-type working table1Medium working table1Hardness block3Large working table1USB flash disk1Quality certificate1Manual book1  If want to get test report by computer after test, please additional purchase our Professional Brinell Indentation Measurement software system or Data Transfer software. 1) Professional Brinell Indentation Measurement software systemSupport automatic measurement and manual measurement work mode, and can generate test report automatically in word format (including hardness value, indentation image, hardness curve, etc.) 2) Data transfer softwareIt can transfer test data to computer and generate test report in word format. Company Profile     EBP's mission is to be recognized as the global professional leader & best partner in the materials preparation and analysis industry, providing our users with innovative & robust full lab-solutions, reliable service, support & access to the knowledge that comes from our team serving the industry for 10+ years. We have 8 senior engineers who working in hardness tester and material testing industries over 10 years. We are skilled in provide complete solutions to our customers. And our professional sales & after-sales team can help our partners develop market more easier!Main products    EBPu Electromechanical Equipment (Zhejiang) Co., Ltd. is one of the professional companies in market, we are committed to becoming the most satisfied supplier to our partners & clients! Our products range: Sample preparation machine, Hardness tester, Metallographic Microscope, Non-destructive Testing Instruments (NDT), Universal testing machine, Impact testing machine and related consumable materials.Click this link for more products!Certifications Application cases Our customer FAQ /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
