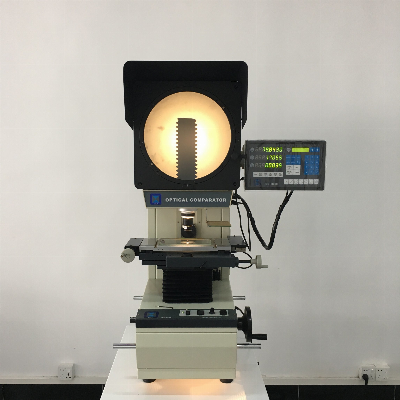

Profile Projector for Contour Inspection (VOC 1505)

Profile Projector for Contour Inspect (VOC 1505)We supply 18 months Warranty time instead of 12 months Video: http://leader-precision.en.made-in-china.com/custom/The-Video-of-Profile-Projector-Optical-Comparator-cQampFSPsnkb.html Introduction Profile Projector VOC series are precise and excellent non-contact optical measuring device integrating with the technology of optic, mechanic, electricity and computer. This Measuring and Profile Projector is widely used at the fields of mechanism, meter, electronic, rubber industry, watch for quality control. VOC series Optical Profile Projector is Optical Comparator, which is very popular in the market, this Optical inspect device is a perfect metrology solution to the contour and surface measurement. VOC series intergrated Profile Projector can inspect all kinds of surface and outline of complicated work-pieces, such as cam, screw thread, gear, milling cutter, tool, dies, press components and so on, This benchtop optical measurement device is an effective metrical and analytic system for education, research institute and lab. Features 1. Excellent optical measuring system 2. Magnification accuracy: 0.08% under contour illumination; 0.12% under surface illumination 3. Equipped with DC-3000 Metrology Counter for Geometry measurement. 4. Supplied with Foot-switch for quick measuring. 5. Erect image measuring for different requirements 6. High Precision measuring table with T-slot, easy to fix the work pieces 7. High resolution 0.5 micron linear scale 8. Customer can also choose optical Edge Detector system as option for auto measurement. 9. Customer can also choose Metrology software as option, the measurement data can be exported to Ms OFFICE Profile Projector Warranty   Technical Data ReverseVOC-1505OVOC-1005OErectVOC1505VOC1005Metal table's size(mm)340*152306*152Glass table's size(mm)196*96175*100Stage Travel X-axis150mm100mmStage Travel Y-axis50mm50mmStage Travel Z-axis90mm(for focus)90mm(for focus)Resolution0.5µm0.5µmMeasuring unitBuilt-in linear scalesBuilt-in linear scalesAccuracy≤(3+L/75)µm≤(3+L/75)µmScreenScreen Diameter: ¢312mmwith 4 film clipsScreen material: fine ground glassReference line: Staggered cross and crosshairScreen rotary range: 0°~360°Rotary angle resolution:1' or 0.01°Digital ReadoutDC-3000 Metrology Counter with RS-232C outputCoordinate skew, mm/inch conversion, ABS/INC conversion, Zero setting,½ calculation, 0 ° 90 ° 270 ° 360 ° conversion, linear compensation,RS-232 data outputIlluminationContour illumination: 24V/150W halogen bulbReflected illumination: 24V/150W halogen bulbFilter (option) for contour illuminationPowerAC110-120v, 200-240v, single phase 50/60Hz,Total power 400WCoolingBuilt-in cooling fansG.W/N.W165/110KG160/105KGTechnical Data of Objective Lens:Objective LensMagnification10X20X50X100XView field diameter¢30¢15¢6.1¢3Working Distance(mm)77.744.338.425.3Max. Workpiece height80mm80mm80mm80mmStandard Delivery Digital Readout DC-3000VOC-10X ObjectiveScreen ClampFoot-SwitchRotary tablePower cableOptional Delivery 2D Measuring SoftwareOptical Edge DetectorOverlay Charts (3 kinds)VOC-20X Objective lensVOC-50X Objective lensVOC-100X Objective lensHolder with ClampV Block with ClampSwivelCenterSupportMini-PrinterCalibration ScaleCalibration gauge   Quality System1. Establish the quality management system based on ISO9001, improve quality inspection, and ensure that all the finished products are qualified.2. All our measuring machines are with CE certification3. All our measuring machines are assembled and adjusted with linear accuracy, so that the instrument accuracy is guaranteed by hardware assembly and adjustment to the greatest extent.4. Our professional technical service team is familiar with the principle, structure, assembly, and software debugging of the instrument, freeing customers from worries!5. We has provided professional and complete measurement solutions for many large and medium-sized enterprises at home and abroad, andhas won the trust of customers!After-sale Service1. Free professional operation training2. Warranty: 18 months instead of 12 months3. Regularly upgrade of software is available free4. Available lifetime technical support  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
