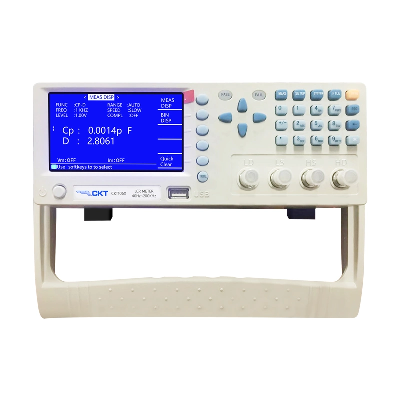

Digital Lcr Meter Resistance Meter Component Tester (Model CKT100LD)

Product Descriptionhttps://ckt2017.en.made-in-china.com/product-list-1.htmlBrief IntroductionCKT100LA/CKT150LA/CKT100LD/CKT106X is digital LCR meter for inspection of all kinds of electronic components. Using 4.3 inches LCD TFT display. It is a high-speed and 6-bit test resolution of the impedance measuring instrument, multi frequency points and 0.1% accuracy can meet the requirements of various occasions' component parameters detection. It is a high cost of quality testing equipment.   SPECIFICATIONS CKT100LA/CKT150LA/CKT100LD/CKT106X  Digital LCR MeterParametersL,C, R, | Z|, D, Q,X,ESR,θ(Deg),θ(Rad)Display ModeDirect,Δ%,V/IBasic Accuracy0.1% ± 5 dgtFrequencyCKT100LA:50Hz,60Hz,100Hz,120Hz,1KHz,10KHz,20KHz,40KHz,50KHz,100KHzCKT150LA:100Hz, 1KHz,10KHz,30KHz,40KHz,50KHz,60KHz,100KHz,120KHz,150KHz (Discontinued)CKT100LD: 100Hz~100KHz (34 frequency points)    CKT106X: 40Hz~200KHz (41 frequency points)Display Range|Z|, R,X,ESR: 0.1mΩ - 99.999MΩ      C: 0.000 pF - 9.9999F        L: 0.0001µH - 9999.9H       D: 0.0001 -9.9999        Q: 0.0001 - 9999.9            q (rad): -3.1416 - 3.1416   q (deg): -179.99 -179.99  Δ%: -999.99% - 999.99%Source Resistance30Ω, 100ΩRangeAuto, Hold, Manual selectionComparator5-bin sortingSignal Level0.1V,0.3V,1V; CKT100LD: 50mV,0.1V,0.2V,0.25V,0.3V,0.4V,0.5V,1VDC Bias SourceNoneTrigger ModeINT, MAN, EXT, BUSSpeed30t/s, 10t/s, 3 t/s, 1-255 times average is availableList TestNoneAdjustmentOpen / short / shortcutFilesU disk copy screen, real-time data storage, which can support the FAT16 format, FAT32 file systemInterfaceRS232C, USB HOST, HANDLERGENERAL FEATURESPower SupplyVoltage: 110V/220V; Frequency: 50Hz - 60Hz  Size and Weight 265mm(W)*100mm(H)*340mm(L) 3.5kgORDERING INFORMATIONAccessoriesKelvin Test clip; RS232 Communication cable; AC Power CordOptionalSMD patch test fixture; SMD patch test clip; Test fixture; Short-circuit slice     Detailed PhotosPackaging & Shippinghttps://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.htmlCompany Profilehttps://ckt2017.en.made-in-china.com/contact-info.htmlChuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc. FAQ:Q. How is your company's product after-sales service system? A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service. Q: Can you customize it? A: Yes, we accept customization according to customer's specific requirements. Q. How long is your lead time? If I want to customize instruments, how long will it take? A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days. Q. What payment method do you accept? A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on. Q. What package do you use for your products? What shipping method do you use? A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements. For more questions, please feel free to send inquiries to us.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
