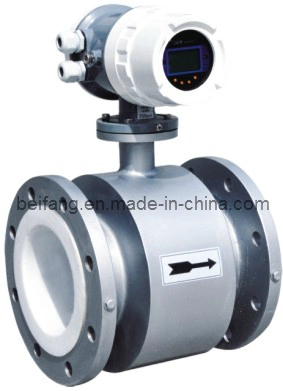

Electromagnetic Flow Meter (EFME) Compact Type

Electromagentic flow meter Compact type1. Electromagnetic flowmeter Integrate type 2. Accuracy: 0.5% 3. Size: DN15-DN3000 4. Protection grad: IP67 or IP68 5. 4-20mA, RS485/RS232, Hart, Pulse                                       The Specifications of    Electromagnetic flowmeterMeasuring fluidConductive fluidAccuracy0.2%, 0.3%Repeatability0.06%, 0.1%Temperature range of fluid-25---180 CRated pressureDN25--DN150: 4.0Mpa    ,               DN200--DN1000: 1.0Mpa    ,DN1100--DN2000: 0.6Mpa,     DN2200--DN3200: 0.25MpaFlowrate range of media0.3---12m/sConductivity  ≥ 1μ   s/cm, ≥ 5μ   s/cmElectrode material316SS, Hastelloy alloy B, Hastelloy alloy C, titanium, platinum dissolution, tungsten carbide, etc.Number of electrode2electrodes(standard), 4 eletrodes (≤ DN500), 6 eletrodes(≤ DN600)Lining materialsChloroprene rubber, PTFE F4, FEP copolymer F46, polyurethane rubber and so onFlange material of bulk304SS, 20# carbon steel and other materials (special orders)Installation formsHolder-style (≤ DN300), flange connected (≤ DN350)Protection gradeIP67, IP68Power supply of converter220V± 20%, 60 HZ/ 24VDC (opional frome the two)Signal outputStandard: Pulse, and 4--20mA, RS485, Hart protocol and MODERBUS protocol are optional.Structural formIntegrative type  and splite type(with 5m standard cables)Power consumption0.65WWorking environmentEnvironmental temperature: -25---60oC,Humidity: 0.5%--90%Disply interface of converterLCD and operation interfaces entirely in English that are able to display instantaneous flow, cumulative flow, and multiple flow units can be selected.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
