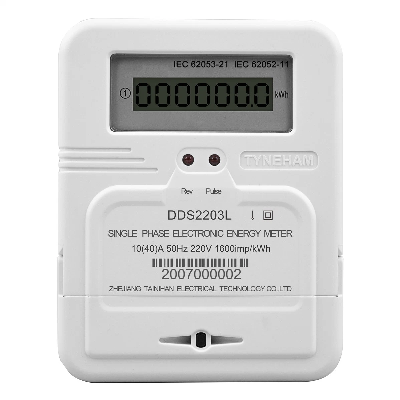

1 Dds2203L Single Phase Two Wire LCD Kwh Meter

Single Phase Two Wire Register Kwh MeterPRODUCT INFORMATIONZhejiang tainihan electrical technology co., ltd DDS2203 Series single phase electronic energy meter are adopt stable performance, low power consumption of industrial components, use the process carefully design and manufacture.This product can be installed either in indoor or outdoor meter box, and used under the temperature of -20ºC--+55ºC and relative humidity below 85%. DDS2203L SPECIFICATIONS1TypeDDS2203L2DisplayLCD 6Digits+1Decimal Or 5Digits+2Decimal3AccuracyClass 14Rated Voltage (Un)220V Or 240V5Base Current (Ib)5A, 10A,15A or other6Max Current (Imax)20A, 40A, 60A or other7Frequency (Hz)50Hz Or 60Hz (±5%)8Starting Current (mA)0.4% Ib9Power Consumption of Current≤1W 10VA Per Phase10IP ClassIP5111AC Voltage Withstand2KV for 1 Minute12Impulse Output Rate (Imp/kWh)1600, 800 Or Other13Operating Temperature-20ºC To +55ºC14Storing Temperature-40ºC To +70ºC15Operating Humidity≤75%16Storing Humidity≤95%17CommunicationN/A18LCD Display BacklightN/A19BatteryN/ADDS2203L FUNCTION IN DISPLAY AND MONITORINGLCD Display 6Digits+1Decimal, Rev led indicator, Impulse led indicatorDDS2203L APPEARANCEDDS2203L DIMENSIONSDDS2203L WIRING DIAGRAMABOUT TAINIHAN    Yueqing Tainihan Electrical Technology CO.,Ltd is located in Xiangyang industrial zone, liushi town,Yueqing City, Zhejiang province, China, which focus on electronic and electro-mechanical meter.    The company is a diversified enterprise integrates development, design, production and marketing together. Driven by innovation, Tainihan keeps perfecting existing products and developing new product lines. We have developed a front board installed energy meter, an inserting installed energy meter a DIN-rail installed energy meter, According to meter functions, there are munti-functional energy meters, multi-rate energy meters, electric power line carrier wave energy meters, network energy meters, and multi-user energy meters in our product range. Our products has attained CE certification with superior quality are popular in the global market.    Our company posses high accuracy special device, advance technology, laborious workmanship and various styles. We also have rights for import and export, our products are widely sold well to southeast Asia, Middle East, South America and other areas.We believe that our company will  be more powerful and far better by your support!TAINIHAN WORKSHOPTAINIHAN TEST BENCH ROOMTAINIHAN AGING ROOM  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
