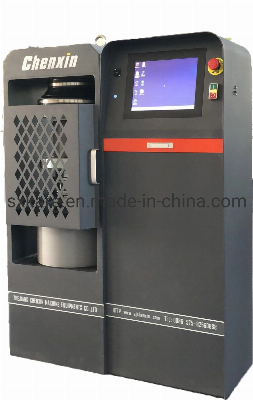

Computerized Electro-Hydraulic Servo Universal Tensile Compression Test Testing Machine (CXYAW-2000E)

CXYAW-2000E Computerized Electro-hydraulic Servo Compression Testing MachineUsageMainly used for testing the compressive strength of concrete and the compressive strength of refractory bricks and other materials.Characteristics1. Frame structure has good toughness and rigidity.2. The use of bolt-free connections increases the stability of the machine3. Adopt no base design, no need to connect tubing, more convenient operation.4. The design of touch screen and keyboard is used to meet the preferences of different technicians.5. According to the principle of ergonomics, the test process is easy to operate.6. The test space is adjusted by the pad and the width of the space is increased, so the elastic modulus of concrete can be operated. When reading the percentile meter, there is no visual occlusion, which is more convenient and faster.Main technical parametersModelCXYAW-2000EMax. force2000KNMeasuring range1%-100%FSRangeGearless, equivalent four gearsForce indicating relative error≤±1%Force resolution1/300000FSForce control range with constant speed0.1%-4%FS/sSpeed control accuracy error≤±2% set valueDistance between two columns340mmMax. distance between platens340mmPlatens sizeφ295mmTest space340*400*110-310mmPiston movementSingle wayPiston rising max. speed60mm/minPiston max. stroke80mmSystem work pressure40mpaIndicating value accuracy≤±0.5%,≤±1%Motor power2.2kwDimension920*500*1240mmWeight500kg  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
