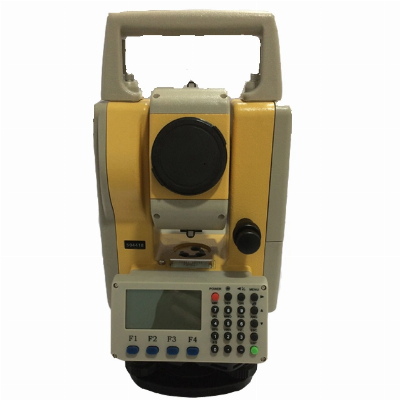

Unique Brand Surveying Instrument Estacion Total Dtm 624r

Specification Image Erect Magnification 30x Effectiveaperture 48mm Resolving power 3.75″ Minimum focus 1m Stadia ratio 100 Sight distance precision ≤0.4%D Tube length 165mm Angle Measurement Measuring method photoelectric detection by incremental encoder Diameterof circle (vertical, horizontal) 79mm Minimum reading 1″,5″,10″Selectable Measuring unit 360°/400gon/6400mil Selectable Vertical angle0° Zenith0°/Horizontal0°Selectable Accuracy 2″ Distance Measurement Single prism (under fair weather condition) 3km Three prism (under fair weather condition) 5km Non-prism (under fair weather condition) 400m Display Max 999999.999m Min 1mm Unit m/ft Selectable Accuracy ±(3mm+2ppm•D) Measuring time Fine single shot:?3S Tracking:0.8S Meteorological Correction Manual input, Auto correction Reflection prism correction Manual input, Auto correction Vial Plate vial 20″/2mm Circular vial 8′/2mm Vertical Compensator System Liquid-electric detection Compensation range ±3′ Resolving power 1″ Optical Plummet Image Erect Magnification 3× Focusing range 0.3m~∞ Field of view 5° Display Type LCD,Four lines,digital Data Communication Port RS-232C,USB On-board Battery Power resource Rechargeable Ni-H battery Voltage DC7.2V Continuous operation time BDC 3000mAh Angle measurement: 20 hours Distance measurement: 8 hours Operation Environment Operating temperature -20°~+45ºC Size & weight Dimension 180mm×175mm×355mm Weight 6.5kg        Detailed PhotosAfter Sales ServiceThe warranty period is 12 months.Within the 12 months, if there is any fault caused by non-artificial reason, which can be repaired by the customer themselves, wecan offer the spare parts to the customer free of charge. If there is any problem which cannot be repaired by the customerthemselves, the customer can resent the products to our factory for repairing free of charge, and the freight charge would beshared by the customer and our company two sides.Under the circumstances out of the warranty period, if there is any problem, wecan repair free of charge for the customers, we just charge for the spare parts at the cost itself, and the freight charge wouldbe bear by the customers.If there is any problem caused by human reason within the first year, the service would be the same as the service out of thewarranty period.Company ProfileTianjin Unique Technology Co., Ltd. is a high-tech enterprise that specializes in researching and manufacturing high accuracy GNSSproducts and surveying equiupments. Our products refer to many fields including GIS (geographic information system), Land Survey,Machine Control, SI (system integration), Agriculture, etc. Our aim is to provide the high-quality products and offer the bestsolutions and services for our customers worldwide.Our Services & Strength1.Any inquiries will be replied within 12 hours.2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.3.All products will have been strictly quality checked in factory before sending out./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
