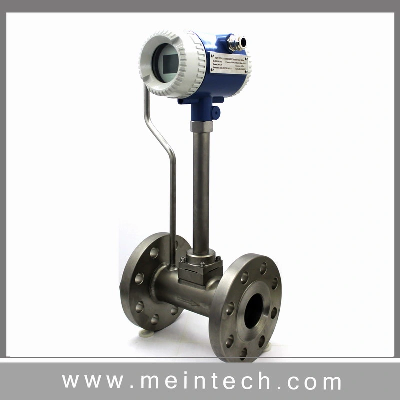

Digital Vortex Flow Meter -80

Digital Vortex flow meterWe manufacture Digital Vortex Flow Meter, Pipe size is from 15mm to 500mm Accuracy is ± 0.5% or ± 1.0% Max pressure ≤ 4.0Mpa, Medium temperature 50_ +350º C, Explosion-proof is ExdIIBT4/ Exib IICT4, Output signal: 4-20mA; RS485; HART. Our Digital Vortex Flow Meter is widely used for Water Sewage seawater, Water distribution, Power Plants cooling water, Boiler feed water, Mining leaching and return flows, Liquid petroleum products, Pipeline leak detection, Energy management systems Process plant water and chemicals. 1. Summary: Modern digital signal processing method used in the vortex flow detection technology, Breaking the traditional analog method of processing the limitations of vortex signal. Clearly overcome low flow detection sensor to detect the weak signal problem, effectively eliminating the flow of noise, greatly improved the vortex of anti-vibration performance, a fundamental solution to the troubled years of the Development of vortex detection problems so revolutionary. Modern digital signal processing by the latest technology to vortex probe signal to analyze, filter, transform, and thus correctly filter out the right flow signal, accurate, reliable measurement data. Intelligent digital vortex Flow meter can be adaptive of various pipeline, measuring medium, the use of the environment. With: Lower measurement limit, wider detection Range, higher measurement accuracy, superior anti-jamming and anti-seismic performance. Free commissioning, free maintenance. 2. FeatureProminent anti-vibration performance Minimum flow rate is very low, flow range ratio up to 30: 1 or higher Using multi-point minimum squares linear amendment, more accurate Parameters are set through keyboard or HART communication. Debug, easy to operate Wire connection is simple, two-wire, three-wire are optional by user Able to cope with a various interface boards, with the integration of a variety of medium measurement function Very low power consumption, can use battery as power supply 3. FunctionDisplay 8 digits total volume, 7 digits instantaneous flow rate, pressure and temperature Temperature, pressure compensation online or fixed compensation Fixed value calibration Low voltage detection reset, watchdog, and the totalizer of brown-out protection 4. ApplicationUniversal gas and liquids include corrosive medium, hot water, saturated steam, super-heated steam, natural gas and so on Water Sewage seawater Water distribution Power Plants cooling water Boiler feed water Mining leaching and return flows Liquid petroleum products Pipeline leak detection Chemicals Energy management systems Process plant water and chemicals /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
