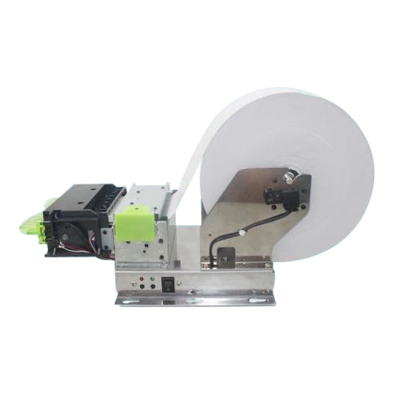

80mm High Resolution USB Interface Thermal Printer

80mm High Resolution USB Interface Thermal Printer with Fast Speed 250mm/sOverveiwRCT-4610  is 3 inch kiosk thermal printer which is consist of thermal printer head ,cutter and control board. It is used for financial self-service terminals, communication self-service terminals, coupons self-service terminals, ticketing self-service terminals, power self-service terminals, medical self-service terminals, insurance self-service terminals,tax kiosks, self-service terminals such as kiosk terminal equipment, tanker, Queuing machines and so on.Production feature1.large motor design and unique buffer   Stepper motor design, cutting paper thickness up to 0.2mm, support 150mm paper roll diameter, reduce supplies replacement times, and buffer device can effectively prevent printing compression.2.Narrow-flat design of paper-taking channel Paper channel narrow flat design can print 0.2mm thickness of consumables.3.Fast Print speed  Depending on the different driving energy and thermal sensitivity of the use of the heat-sensitive paper can be set according to user requirements of different printing speed, up to 250mm/seconds of printing speed4.Easy to load paper structure   Unique rubber roller and print head slide away from the design scheme, it is easy to clean the print head and fault removal5.Penetrating photoelectric detection   Penetrating photoelectric detection can be used for label seam mark Detection6.Quick Elimination Card Cutter  A variety modes of Quick Elimination Card knife7.unique paper near end detection   Easy to adjust the amount of paper8.Strong overall structure   With thick sheet metal design, the structure is firm and difficult to deform 9.Good heat dissipation of the motor  Fixed motor is metal, can quickly heat dissipationTechnical parameters  PrintingPrint methodThermal-line dot methodPrint speedMax:250mm/sResolution203dpi(8dots/mm) Effective printing area80mmCharacterCharacter set ASCII,GBK,BIG5 and so on Print fontASCII:(9*17,9*24,16*18,12*24)Chinese:(24*24)The characters number per lineFont A(12*24):32Font B(9*17):42   GBK:16Paper Roll specificationPaper typeThermal paper rollPaper width58-82mmPaper thickness55-200μmMax paper roll diameter/paper roll inner diameterMax:150mm/Min:18mmPaper Feed methodAutomatic feeding (straight out)detectionHead temperature detectionThermistor    No Paper detectionPhotoelectric detection    Paper near end detectionPhotoelectric detection     Black mark detectionPhotoelectric detection      Seam Mark DetectionPhotoelectric detection     platen open detection functionMechanical switchBaud rate9600bps-115200bpsInstruction SetEPSON ESC/POS Instruction SetDriver Windows DriverInterfaceRS232Barcode1D codeUPCA,UPC-E,JAN13(EAN13),JAN8(EAN8),CODE39,ITF,CODABAR,CODE128,CODE93;2D codeQR code ReliabilityPrint Life100KmCutter life>1000000cuts(When cutting paper with thickness greater than 0.1mm, 500000cuts)CutterAuto cutter Support full cutter and half cutter simultaneouslyPowerinputDC24V±10%,≥2AEnvironmental  conditionsOperating temperature0°C~50°COperating humidity20%RH ~85% RHStorage temperature-20°C~60°CStorage humidity5% ~90%RHOverall dimension (wide * deep * high)With presenter(paper roll diameter 150mm)114.8*157*234.3mm(without paper bezel) Without presenter(paper roll diameter 150mm)114.8*157*233.8(without paper bezel)Without presenter(paper roll diameter 80mm)114.8*83*170.3mm (without paper bezel)  Details Print speed:Max:250mm/s                                                 Resolution:203dpi(8dots/mm)Effective printing area:ASCII,GBK,BIG5 and so on     Head temperature detection:Thermistorplaten open detection function:Mechanical switchBaud rate:9600bps-115200bpsInstruction Set:EPSON ESC/POS Instruction SetDriver:Windows DriverInterface:LAN PackageCertificatesShipment Business partner   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
