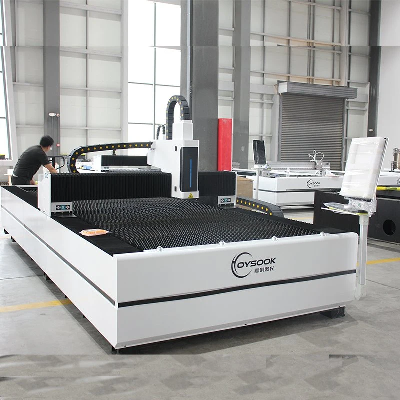

Most Cost-Effective Laser Cutting Hoysook CNC Metal Fiber Laser Cutting Machine

  Hoysook Brand CNC Metal  Laser Cutting Machine Tenical Data of Metal Laser Cutting MachineModel  HY3015SLaser Power  1000W  2000W  3000wMax. Cutting Thickness  12 mm  20 mm  25mmLaser Source  MAX Laser Head BM110 Working area  3000*1500 mm  X axis Stroke  3020 mm  Y axis Stroke  1520 mm  Z axis Stroke  150 mm  Transmission way  Imported Japan THK ball screw  Table-driven system  Delta  Focus Method  Dynamic Following and Automatic Adjust Focus  Location precision  ≤±0.05 mm  Re-location precision  ±0.02 mm  Max. moving speed  100m/min  Laser wavelength  1070nm  Minimum line width  ≤0.1mm  Supporting Format  PLT, DXF, BMP, AI ,CNC Power demand  380V/50HZ  Worktable max. load  5000 Kg  Dimension (L*W*H)  4100mmX2200mmX1700mm  Control Method  offline movement Control  Control software  Raytools XC3000Product Description1.Max Laser Source Max Laser Source is the famous laser source brand , Integrating high power, compact size, user-friendly control, high-quality beam quality, and high light conversion efficiency .2. BM 110 Laser Head  Excellent design:Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency;Auto focus:Automatic focusing, reducing human intervention, automatic focusing range -12~+10mm, focusing accuracy 0.05mm;Multiple protective lenses:The collimation lens is added to protect the lens, effectively protecting the collimation lens;Drawer mirror holder:Quick and easy replacement of protective lenses;High adaptability:Equipped with multiple fiber interfaces such as QBH and QD, it can be adapted to various mainstream lasers.The built-in motor drive unit can automatically change the position within the range of 24mm. The user can set the continuous focus through the program to complete the rapid perforation of thick plates and automatically cut plates of different thicknesses and materials.The composite lens group equipped with D30 integrates the light beam, and the optimized optics and water-cooling design enable the laser head to work continuously and stably for a long time under high power.3.  Motor and Reducer  Delta motor and Moto reducer, they are a perfect combination. The speed is more than 2 times higher than that of ordinary motors, precise point control, and improved processing efficiency4. Bed frame heavy duty steel plate bed frameQuenching and tempering process to prevent deformation, reduce vibration, and make the processing accuracy higher5. Guild Rail and RackTaiwan Hiwin Guide Rail& Taiwan YYC rackFamous brand, high quality, not easy to deform, make the machine run more smoothly and stronger.Cutting Samples Factory Our advantage :More than 20 years of production experience, reliable quality.The professional team provides overall solutions, not just selling machines.Perfect after-sales service team, solve any of your problems within 24 hours.International engineers in 50 countries, free door-to-door service.Long warranty period, so you can rest assured to buy.>>> After-sale ServiceInstallation and debuggingTechnicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.TrainingFree of charge for training within warranty. But customers need to take charge of the cost for accommodation, air tickets, visa fee.24/7 online serviceAll our laser equipment is provided with 12 months warranty. Hoysook Laser offers free maintenance or replacement service if something is wrong with the equipment under warranty. Accessories supply Laser source warranty is 2 years. Other parts is 3 years except for optical and consumable parts.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
