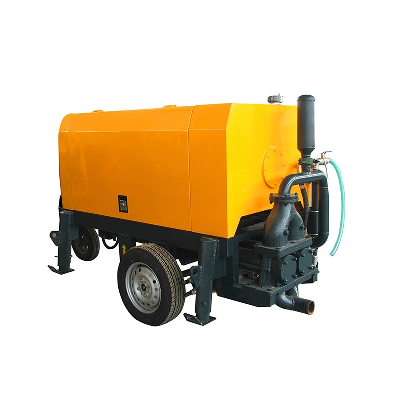

Lightweight Foam Concrete Machine for Cast Wall and Roofing Insulation

lightweight foam concrete machine for cast wall in-site and roofing insulationBrief Instruction:LF20 foam concrete machine is a middle-sized patent product based on many years experience, with completely independent intellectual property rights. It includes a screw conveyor, a mixer, a foam generator and a foam concrete pump, adopts advanced control technology, can exactly adjust foam cement density. It also meets different densities of foam concrete products manufacturing, capacity is 20m3/h.Features:1. LF20 foam concrete machine is a middle-sized one, designed for bricks production, which is easy to operate and mobile.2. Pumping, foaming and mixing system assembles as a whole, convenient to use;3. It has the continuous feeding system and water supply system, with high pumping height and low power requirement. 4. It adopts hydraulic system to pump foam concrete, more powerful, can up to 80m vertical pumping distance.Advantages:1.Frequency converter:adopts digital control technology, can exactly adjust foam cement density.2. Static mixer: reduce the ratio of foam loss and guarantee the quality of the foam concrete.3. Hydraulic piston system: stable flow, small fluctuation, and low foam loss ratio.4. Screw conveyor: automatic delivery, time-saving and labour-saving.Technical parameters: Model No./Cement foam machineLF20Max. theoretical concrete put(m³/h)20Motor power(kw)21Theoretical vertical conveying height(m)80Theoretical level transmission distance(m)500Mixer tank capacity(L)580Filling height(mm)1100Mixer size(mm)1940*780*1470Feeder size(mm)3990*760*830Main part overall dimension(mm)3000*1420*830Weight of main part(kg)1400Shipping List LF20 Foam Concrete Machine1 setφ50(20m) HYD hoses4 pieces (80m)Water pump 1 set Water pipe 1 pieceTool box1 pieceSeal ring1 pieceCement mixer1 set Screw feeder1 set φ80(0.5m) Rubber hoses1 pieceφ89 Clamp3 piecesProximity switch1 piecePiston2 piecesWater drum and holder1 setApplication of foam concrete:                            We can also supply interlocked molds for producing various kind of bricks.                                             These pictures are the products of LF20D foam concrete machine.The successful case:                                Our foam agent                                                                         Our block moldOur Factory:  Note: The Foam concrete's other applications:External wall thermal insulation Thermal insulation roofingThermal flooringUpstanding beam foundation ditches fillingSound insulation and fire protection wallsPlayground and track constructionSound insulation layer, tunnel lining fillingCellar, basement and arch filling                      Sewers and Drains filling Horizontal floor heightening Water tank and fuel tank buildingPlatform filling and mending Garden and rockeries Foam concrete block Foamed concrete precast, hollow wallboard casti/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
