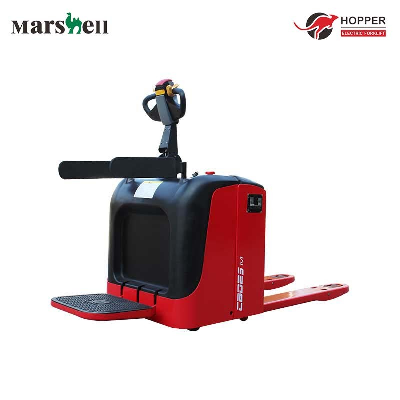

2.0t Full Electric Pallet Car with AC Driving Motor (CBD20M)

2.0t Full Electric Pallet Car with AC Driving Motor (CBD20M)Click Here Download Catalog2.0T AC Driving Motor Full Electric Pallet Truck (CBD20M) main configuration:1 maintenance-free AC drive system2, the electronic steering system3,24V / 270Ah capacity of lead-acid batteries4, Curtis AC controller5, imported hydraulic power unit6, can quickly replace the battery side pull structure2.0T AC Driving Motor Full Electric Pallet Truck (CBD20M) suitable mode1, relatively flat cement or similar hard surface 2, suitable for single pallet cargo handling 3, for high frequency, heavy load cargo handling 4, the working time of about 6 hoursTips:  Does not apply to contain flammable and explosive gas or dust2.0T AC Driving Motor Full Electric Pallet Truck (CBD20M) specifications:Model  CBD20MPower Type  ElectricOperation Type  Stand-onSteering Mode  Electric Power SteeringLoad Capacity  Qkg2000Load Center  Cmm600Wheelbase   ymm1410Total Weight(With Battery) kg650  Axle Load( Loaded):rear/front kg900/1750 Axle Load( Unloaded):rear/front  kg545/105Overall Length  L1/L2mm1800/2265Overall Width   W1mm810Fork Sizel/e/smm1150×170×55Width of Forkb2mm540/685Ground Clearance at Forkh3mm85Lifting Heighth2mm205Ground Clearance at center of wheelbasem1mm55Height of Operating Handlebar(Min./Max.)h14mm1000/1380Turning Radius(Footboard Fold/Unfold)Wamm1660/2100Right Stack Aisle Width(Pallet size 1000*1200,Footboard Fold/Unfold)Astmm2400/2840Right Stack Aisle Width(Pallet size 800*1200,Footboard Fold/Unfold)Astmm2315/2755Tyre Type  PolyurethaneTyre Size(Front) mmΦ85*70Tyre Size(Balance Wheel) mmΦ115*55Tyre Size(Driving Wheel) mmΦ230*75Tyres Number front/rear(x=drive wheel)  4/1x+2Drive Damping Method  Drive frame integral rail type spring shock absorptionTraveling Speed(Loaded/Unloaded) Km/h7.5/8Lifting Speed(Loaded/Unloaded) mm/s22/35Lowering Speed(Loaded/Unloaded) mm/s30/26Max. Gradeability(Loaded/Unloaded) %8/15Service Brake Type  Electromagnetic/RegenerationParking Brake Type  ElectromagneticDrive Motor Power(AC) KW1.5Pump Motor Power(DC) KW0.8Battery Voltage/Capacity K5 V/Ah24V/210Battery Weight kg188Controller Brand  CURTISController Model  1232ENoise Level dB70 Hopper is the subsidiary brand for Material Handling Equipments of Marshell electric vehicle company, with four factories located in Zhaoqing, Shanghai, and two in Anhui.Hopper forklift trucks are sold all over the world, manufactures serial types of materials handling machines include hand pallet truck, electric pallet truck, electric pallet stacker, electric reach stacker, electric tractor, electric counterbalanced forklift truck, etc. Widely used in production factories, warehouses, stations, airports, supermarkets, and other fields.Each individual vehicle is 100% tested. IQC, Q, and QA procedures are employed to test materials, check products on the assembly lines, and evaluate goods prior to shipping. To control the low cost, we also make many components in our factory, such as batteries, charger, gearbox, chassis, mast, fork, painting, tooling, etc.  Company Information/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
