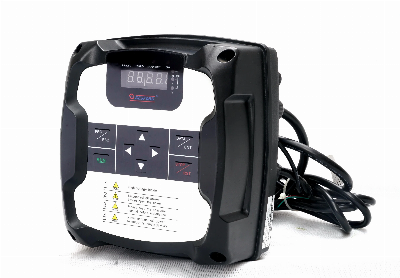

Waterproof IP54 Variable Frequency Constant Pressure Water Pump VFD Inverter

Waterproof IP54 Variable Frequency Constant Pressure Water Pump VFD InverterWater Pump InverterB603intelligent constant pressure water pump controllerIs specially designed for small booster pumps, reducing the vibration and prolong the life of controller. Power Range: Single phase 200V~230V: 0.5HP~3HP(0.37KW~2.2KW) Three phase 200V~230V: 5HP~75HP(3.7KW~55KW) Three phase 380V~440V: 1HP~470HP(0.75KW~350KW) Main Features:(1) Updated B603 series can connect max.2 pressure transducers on multi-pump application (2) the controller directly on the need to set the value of the constant pressure, constant pressure fully automatic operation. (3) the signal can choose a variety of pressure: Pressure sensors, transimissialbe pressure gauge, electrical contact pressure gauge. (4) multi-pump control linkage with the turn of automatic pump function between the two pump only a communication line to connect, share the pressure signal. (5) with a soft start and soft stop function. Avoid water hammer effect and impact on power grids. Double-pump can be set to control the rotation to rest, to extend the life of pumps and electrical accessories. (6) unattended, when the call after power, water pumps start automatically, constant pressure control (this feature is optional). (7) automatic fault detection, such as the water pressure is too high, too low, too low water level alarm, communications failures, and so on. (8) a full range of motor protection features such as: Electrical overload, short circuit, open circuit, overheat and over-voltage and low voltage protection, and so on. (9) energy efficient, than the average of 30% of the secondary power supply 60%. (10) double-pump can be linked, no auxiliary pump, auxiliary pump in a dormant state in peacetime, when the auxiliary pump water during the height of the peak automatically add water, high capacity utilization. Abtained Certificates:Applications:  Packing&Delivery/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
