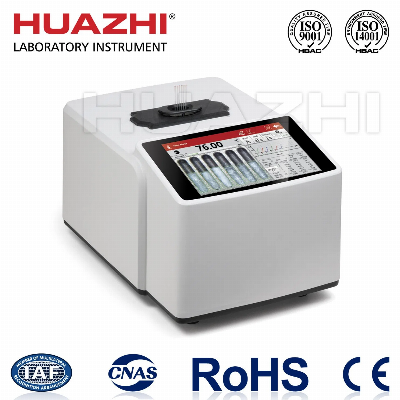

FDA 21 CFR Part 11 Melting Point Meter with Machine Vision

The melting point of a substance is the temperature at which the material changes from a solid to a liquid state. In organic chemistry, melting point determination is not only the basic approach to determine the nature of material, but also an important method to obtain the purity of a substance. Therefore, melting point apparatus is widely used in the chemical industry and the medical research, and it's a must-have instrument in the manufacturing of medicine, spices, dyes and other organic crystal substances. Huazhi auto Image analysis & video melting point apparatus of second generation, abandoning the first-generation photoelectric detection technology, innovates the sampling method of melting point determination, and adopts the leading AUTO-ROI® technology(image analysis in machine vision ) to gain insight into all the melting details of the sample, and automatically determine the melting point. It is realizing a new leap in technology.Main characteristic~Melting point measurement1, It applies AUTO-ROI® technology of high definition video image analysis to measure automatically, with high accuracy and good reproducibility. 2, Vision measurement is also available. With high-definition video storage and playback, the melting details and process is crystal clear. 3, 7' inch HD touch-screen. The nicer interactive interface make it easy to operate and it displays the melting video and curve in real-time .4, Fastly and efficiently support to auto test 4 capillaries simultaneously. 5, Unique digital temperature control technology controls the temperature exquisitely and has a wide ramp rate which is also stepless. 6, Multiple temperature linear calibration is supported. 7, The three working modes (Standard, long distance and learn modes) adapts to a variety of samples. ~User management Super user management modes. It supports login, add,delete, edit, review users, and multiple authorization increases and decreases. Hand-written electronic signature is also supported. The measuring methods and report can be assorted by users.~ Predefined measuring methodsSupport predefined 128 kinds of measuring methods. Support add, delete, edit, review and invoke methods quickly~Measuring report Manual/auto generate reports; Delete, view, print, export measuring reports; Report format can be customized; Conform to FDA 21 CFR Part 11, Ch.P., PH. EUR., USP and JP Pharmacopeia methods. ~Log ManagementAuto generate, view, print and export log.~Communication functionsRS232 port can connect with printers. The data can be exported to USB flash disk directly. The machine can be operated by keyboards and mouse.WIFI is optional.   Main Technical ParametersModelHMZX-1BTest MethodImage analysis AUTO-ROI® measure + Visual measurementSample Loading WayCapillary Tube MethodTemperature rangeAmbient ~ 400ºCMin. Temperature Resolution0.01ºCRamp RateStepless setting at 0.1ºC~20ºC/minRamp Rate Error≤5%Accuracy±0.2ºC(
