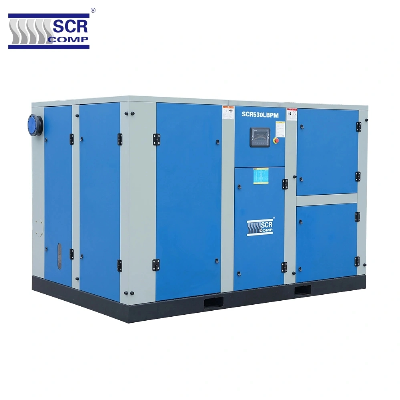

SCR530lbpm 530cfm 3bar Non-Lubricated Electric Variable Frequency Industrial Air Compressor

Product Technical DescriptionProduct NameSCR530LBPM 530CFM 3bar 45kw Low Pressure non-lubricated electric variable frequency industrial Air CompressorModel : Low Pressure Permanent Magnet Series (LB & LBPM)Type: Low Pressure Permanent Magnet Screw Air CompressorVoltage: 380V/50HZ/3P, 220V/60HZ/3P, 400V/50HZ/3P, 415V/50HZ/3P or Customer′s RequirementsWorking Pressure: 1.5~5barInstalled Motor Power: 37~185 KwColor: BlueDriven Method:Direct DrivenTrademark: SCRTransport Package: Standard Wooden PackingAvailable Certificate: CE, ISO, UL, ASME, GHOSTOrigin: Shanghai, Chinaapplication:Beverage , Biological Fermentation , Cement Transportation , Printing & Dyeing , Sewage Treatment , TextileProduct Features1.Specially designed PM motor.2.Enhanced energy savings.3.Low Energy Consumption,Low running,maintenance cost.4.Aptitude and intelligent Control, integrated touch-screen PLC displayer.5.Unique safe units make whole compressor more safety, more stable,lest noise,lest energy Loss.6.Easy to install,operate,maintain.Specially designed PM motor:The PM motor efficiency is even higher than IE3 premium efficiency motors. The motor uses high performance magnetic materials giving many advantages such as bearing free operation, grease free maintenance, direct 1:1 coupling without transmission losses, low noise and low vibration leading to a compact structure.Enhanced Energy Savings:When demand is low the PM low pressure compressor firstly reduces the speed to maintain the correct flow demand. If the air demand stops the compressor enters standby mode, saving further energy. The compressor automatically restarts and runs when the pressure drops below its setpoint.The latest generation intelligent touchscreen controller:SCR's latest touchscreen interface allows simple intelligent control for your compressor. Pressure and scheduling times can be easily programmed allowing you to automatically start and stop the compressor to match production times. Remote operation and real time monitoring are built in the controller as standard.Specially designed oil pipe system:The oil system has been specially designed to reduce maintenance downtime and extend the periods between maintenance visits.ModelSCR530LBPM-3SCR530LBPM-4SCR530LBPM-5Capacity/Pressure(m3/min,/BAR)4.5~15/34.5~15/44.5~15/5MotorPower(KW)455555Speed(r/min)450-1500Starting wayStar-DeltaVolt(V)380/400/415(220)Motor safety gradeIP54Motor isolation gradeFElectrical Supply380(400,415)V/50Hz/3Phase, 220(440)V/60HZ/3POutlet Temperature(ºC)≤ Environment Temperature+10ºCDriven wayDirect DrivenNoise level at 1 meter70±3dBCooling methodAir coolingOil content1.2~3.6Outlet ConnectionDN80DimensionLength(mm)2400Width(mm)1760Height(mm)1700Weight(KG)2700Product CategoriesAdvantagesApplicationAbout SCR/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
