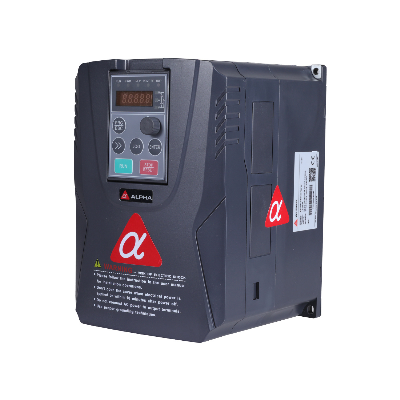

Alpha A6 5.5KW  VFD/VSD inverter with CE (accept OEM)

  Product Description Product  DescriptionA6 series of inverters adopt the most advanced current vector control technology thatfeatures low speed rated torque output and ultra-quiet stable running. They arecharacterized by diverse control modes, up to 36 perfect protection and alarm functions,on-line monitoring and on-line adjustment of a variety of parameters, built-in RS-485communication interface, flexible operation, and thus satisfy various needs of users.This series of inverters apply to asynchronous motor (A6 series) and synchronousmotor (A6T series), including paper making, textile, food, cement, printing and dyeing,plastic machinery, and other industries. As speed controllers, this series of inverterspossesses good adaptability of load, running stability, high precision and goodreliability. They can improve the power factor and efficiency, and be used as apower-efficient application.    Features TerminallabelNameDescription of terminal functionSpecificationAI1~AI2Analog inputsReceive voltage/current input. Voltage input mode is the default mode. AI1 receives voltage signal only.Input voltage: 0~10V Input current: 0~20mAReference ground: GNDAO1Analog outputBe able to output analog voltage/current.Voltage output is the default mode.Output voltage: 0/2~10VOutput current: 0/4~20mAReference ground: GND485+RS485 interface485 differential signal positive terminal Standard RS-485 communication interface, Not isolated to GND.485-485 differential signal negative terminal X1~X5Multi-function input terminalsIt can be defined as a multi-function discrete input terminal through programming. Optical-isolator input Input resistance: R=3.9kΩInput voltage: 0~30VReference ground: COMDOOpen collector output terminal It can be defined as a multi-function output terminal for pulse signal through programming. It can also be used as an on-off output terminal.  Opto-coupler isolated OC output. operating voltage: 0V~26V Maximum current: 50mA Output frequency: 0~50kHz Reference ground: COM Y1Open collector output terminalIt can be used as an on-off output terminal. Opto-coupler isolated OC output. operating voltage: 0V~26V Maximum current: 50mA Reference ground: COM TARelay outputIt can be defined as a multi-function relay output terminal through programming.TA-TB: NC  TA-TC: NOContact capacity: 250VAC/2A (COSΦ=1.0) 250VAC/1A (COSΦ=0.4) 30VDC/1ATBTCPLCMultifunctional input common terminalWhen leaving the factory, it is shorted to 24V, and the PLC is internally isolated from 24V.Note: When using PLC, the SW4 jumper on the right side of the control terminal must be disconnected.X terminal supports NPN and PNP connection methods.10V+10V power supply Provide +10V power supply externally (Reference ground: GND) Maximum output current 20 mA Open circuit voltage can be up to 12V 24V+24V power supply Provide +24V power supply externally (Reference ground: COM) Maximum output current 100mA GND+10V Reference GNDReference GND for analog signal and +10V power supplyInner Isolated from COMCOM for +10V, AI1, AI2, and AO1COM+24V Common GNDUsed with other terminalsIsolated from GNDWiring Technical Specification Specification and Parameter SeriesModelInput VoltageInput current (A)Output current (A)Motor Power (kW)A6-F203R75GBThree-phase 380V3.72.50.7531R5GB/31R5PB5.44.01.532R2GB/32R2PB7.06.02.23004GB/3004PB10.79.0435R5GB/35R5PB-N15.513.05.537R5GB/37R5PB-N20.517.07.53011GB/3011PB-SJ26.025.0113015GB/3015PB-SJ35.032.0153018G/3018P-SJ3018GB/3018PB-SJ38.537.018.53022G/3022P-SJ3022GB/3022PB-SJ46.545.0223030G/3030P-N3030GB/3030PB-N62.060.0303037G/3037P-N3037GB/3037PB-N76.075.0373045G/3045P-N3045GB/3045PB-N92.090.0453055G/3055P-N3055GB/3055PB-N113.0110.0553075G/3075P-N3075GB/3075PB-N157.0152.0753093G/3093P-N3093GB/3093PB-N180.0176.0933110G/3110P-N214.0210.01103132G/3132P-N256.0253.01323160G/3160P-N307.0304.01603185G/3185P-N350.0342.0185.03200G/3200P-N385.0380.0200.03220G/3220P-N430.0426.0220.03250G/3250P-N500.0480.0250.03280G/3280P-N548.0520.0280.03315G/3315P-N625.0600.0315.03355G/3355P-N710.0680.0355.03400G/3400P-N760.0750.0400.03450G/3450P-N830.0820.0450.03500G/3500P-N910.0900.0500.03560G/3560P-N970.0950.0560.03630G/3630P-N1070.01050.0630.0AccessoriesModelHH1WW1DD1d3R75GB/31R5PB~32R2GB/3004PB1981751201101501604.53004GB/35R5PB~35R5GB/37R5PB-N2101821301191621724.537R5GB/3011PB~3011GB/3015PB-SJ25523818016617418373015GB/3018PB-SJ~3022GB-SJ2952841801352102206ModelHH1WW1DD1d3030P-N~3037G/3045P-N46044028523018820383045G/3055P-N~3055G/3075P-N53551232018023125083075G/3093P-N~3093G/3110P-N56054237524527429283110G/3132P-N~3132G-N657630458338285303103160P-N~3200G/3220P-N80978352042036037810ModelHWDD1ABCΦdΦd13220G/3250P-N~3250G/3280P-N1274620385404550.523942014123280G/3315P-N~3400G/3500P-N1607800412430732266300+30014123500G/3560P-N~3630G-N18001000480498900300/22/                      External Dimension (unit: mm)/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
