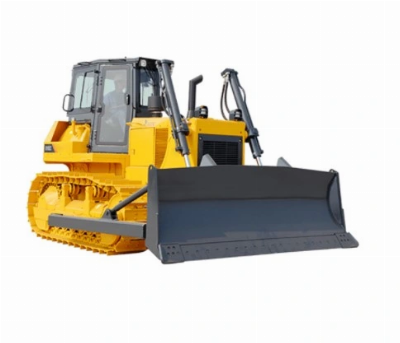

Shantui 220HP Bulldozer with Ripper SD22 Dozer

Shantui 220HP Bulldozer with ripper SD22Product Description  Item Parameters Unit Dimmensions(LxWxH) 5528×3725×3741 mm Operating Weight 24600 kg Ground Pressure 0.078 MPa Gradeability 30 ° Engine Model NT855-C280S10   Rated Power 180/2000 kW/rpm Blade Type Straight tilting blade  Angle blade  U blade      Blade Capacity 7.8 for straight tilting blade  5.4 for angle blade  8.4 for U blade    m³ Blade Size WxH Straight tilt blade 3725x1395 U blade 3860x1379 Angle blade 4365x1107 mm Max drop below ground of blade 540 mm   New High Quality SHANTUI 220HP Dozer SD22 Mini Crawler Bulldozer with Front Blade and Ripper SD22 Construction Machine Bulldozer SD22 crawler bulldozer adopts advanced technologies, including hydraulic drive, hydraulic control, electronic monitoring, and high capacity blade, and is fitted with ROPS, hexahedron cab with good visual field, air conditioning system, and ergonomic control system, featuring reasonable structure, advanced performances, and simple operations. The high power NT855-C280S10 with high-efficiency turbocharger is equipped to expand the high-efficiency working zone of engine and achieve lower fuel consumption.The mature and stable hydraulic torque converter, the high reliability power shift transmission, and two-stage spur gear final drive feature high power transmission efficiency and high durability.The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating.The full box-type main frame features high carrying capacity against impact load and bending moment, in which the application of high performance materials and high strength castings makes the main frame stronger and the high quality welds guarantee the life cycle of the main frame.The advanced fuel-saving hydraulic circuit features low energy consumption and convenient maintenances, with the working pressure up to 19.1MPa.The integrally injection molded instrument panel features beautiful modeling and realize the automatic diagnosis and whole-process monitoring for the malfunctions in domestic market.The chassis system features powerful traction and durability and high adaptability and stability under various complicated working conditions.In accordance with ergonomic principles, the gearshift, steering, and accelerator controls are arranged on the left side of the driver, with the adoption of flexible shaft mechanism. The working device controls are centrally arranged on the right side of the driver with adoption of servo control system, featuring light and flexible controls.The standard straight tilting blade features powerful cutting force and durability, with optional U-blade at the user's choice. The single-shank ripper features adjustable penetrating angle and powerful penetrating force, with optional three-shank ripper and traction frame at the user's choice./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
