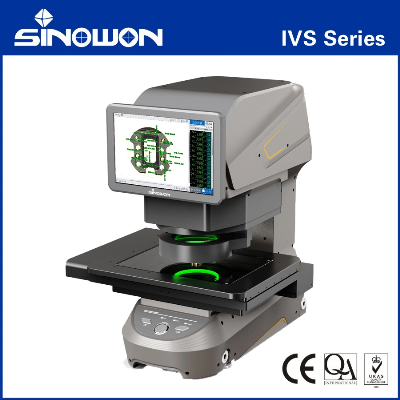

Instant Vision Measuring System Ivs-202D

      Product Characteristic:Benchtop Instant Measurement SystemTable structure, compact size, easy to handle.One-Button Measurement,can also be matched with IO signal to achieve automatic measurement.The report can be uploaded automatically into data management system.High Precision Measurement Under Surface LightEquipped with Double Magnification Telecentric Lens and two 20MP camera, auto multi-angle surface light and optional coaxial surface light.With the independent powerful AI edge calculation algorithm, it can easily realize precise edge searching on the surface and filter invalid areas for boundary clutter.The measurement repeatability of surface light can also reach the similar level as that of bottom light.Fast Measurement And Easy OperationCan measure 100 dimensions in one second, greatly reducing the measurement time.The operation interface of the software is simple and easy to be understood, and the measurement program and parameter setting can be easily written.With automatic focusing, automatic positioning and automatic measurement function, anyone operation can obtain stable measurement results.Technical Specifications:ModelIVS-100DIVS-202DIVS-302DMeasuring RangeXφ100200mm300mmY200mm200mmZ75mm75mm75mmFOVHigh-Precision Mode26mm X 18mmWide-Field Modeφ100mmRepeatabilityHigh-Precision Mode± 1.5μmWide-Field Mode± 3μmMinimum Unit0.1μmAccuracyHigh-PrecisionWithout Binding±1.5μmWith Binding±3+L/150μm±3+L/150μmWide-FieldWithout Binding±3μmWith Binding±5+L/150μm±5+L/150μmWeight33 Kg45 Kg50 KgOptical SystemCamera1" 20MP BW Camera * 2LensDouble Magnification Telecentric LensSurface LightTwo-Ring Liftable LightBottom LightGreen Parallel Bottom LightCapacity5 KgMeasuring SoftwareGD&T SoftwarePower Supply220V±10%,50HzWorking EnvironmentTemperature: 20±3ºC, Humidity: 30-80%, Vibration:
