TUV Xlpo 4mm 6mm 10mm Power DC PV Solar Cable

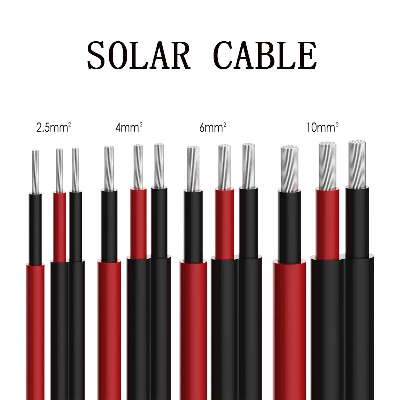

Product DescriptionCE TUV Battery DC Red Black PV Solar Power Cable Wire Solar Panel cable2.5/4/6/10mm2 single or dual cores cableXLPE XLPO wire cable priceCABLE & connectorsApplicationsThese cables are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.Electrical Properties» Rated Voltage U0/U: 0.6/1 kV AC; 0.9/1.5 kV DC» Maximum Permitted DC Voltage: 1.8 kV DC (conductor/conductor, non earthed system, circuit not under load)» Insulation Resistance: 1000 MΩ-km» Spark Test: 6000 Vac (8400 Vdc)» Voltage Withstand: 6500 Vac for 5 min  Model solar photovoltaic DC cable Rated Voltage 1000V/1500V DC Rated Currency 30A Ambient Temperature -40ºC~90ºC Insulation Material XLPO Conductor cores Single core,double core Jacket color red,black Lead Time about 20 days Detailed Photos complete in specifications:2.5mm/4mm/6mm/10mm...  Factory Other Hot ProductsView more products,you can click product keywordsCertifications TUV certificate Exhibition Packaging & Shipping FAQ1. Are you a factory or trading company?  We are a cable factory over 15 years, works with everything from the raw material to the finished product 2. Where is your factory?  Our factory is located in Shaoxing and Hangzhou 3. How can I get some samples?  We are honored to offer you samples for quality evaluation. 4. How does your factory do on quality control?   You order will be test 100% before packing and shipping or you also can arrange your QC department 5. What your delivery date?   15-30days after your kind deposit 6. Can you printing our logo on cable or packing?   Yes, available. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
