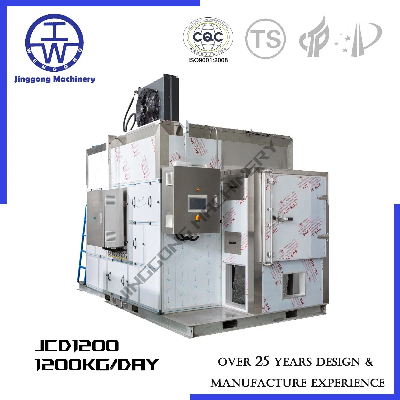

Heat Pump Sludge Dryer, Sludge Dewatering Machine, Sludge Drying Machine

Principle of sludge drying at low temperature:The low-temperature sludge dryer independently developed and designed by Jinggong Machinery uses the principle of low-temperature evaporation and condensation to remove moisture, and uses dry hot air convection to evaporate and dehydrate the wet sludge on the mesh belt at low temperature, and circulate the condensed wet air to make the sludge dry.  Heat pump mechanism:Heat Pump Dehumidification= Dehumidification+ Heat Pump Energy RecoveryType selection:  ModelJCD1200SL/FLJCD2400FLJCD4800FLJCD7200FLJCD9600FLJCD10800SLJCD16200SLJCD21600SLJCD27000SLJCD32400SLJCD37800SLJCD43150SLJCD48600SLJCD54000SLStandard water removal / 24h1200kg2400 kg4800 kg7200 kg9600 kg10800kg16200 kg21600 kg27000 kg32400 kg37800 kg43200 kg48600 kg54000 kgWater removal / h50 kg100 kg200 kg300 kg400 kg450kg675kg900kg1125kg1350kg1575kg1800kg2025kg2250kgOperating power15kw27 kw51 kw75 kw106 kw105kw155kw205kw255kw305kw355kw405kw455kw505kw  Heat pump host Number of modules  1 set1 set2 set3 set2 set2 set3 set4 set5 set6 set7 set8 set9 set10 setCooling methodWater-cooled / air-cooledAir-cooledAir-cooledAir-cooledAir-cooledWater-cooled SL  Cooling water flow Δt = 15 ºC  0.5m3/hSee note 1////8.5m3/h12.8m3/h17m3/h21m3/h25.5m3/h30m3/h34m3/h38m3/h42.5m3/hThe refrigerantR134aPower supply(220V80V V)/3H/50Hz(60Hz)Drying temperature50 ~ 60 ºC (return air) / 65 ~ 80 ºC (supply air)Control SystemTouch screen + PLC programmable controllerApplication scope of wet sludgeMoisture content (75% -81%) (other water content is customized)Dry waterFrequency conversion adjustment, moisture content (10% -50%, adjustable)Forming methodCut into stripsDimensions (L * W * H) mm3400*1510*21803910*2350*24806610*2350*24809310*2350*24808020*3150*32508020*3150*325011270*3150*325014520*3150*325017770*3110*320020920*3150*325024570*3150*325027520*3150*325030770*3150*325034020*3150*3250Structure typeOutfitOutfitAssemblyAssemblyAssemblyAssemblyAssemblyAssemblyAssemblyAssemblyAssemblyAssemblyAssemblyAssemblyWeight   2Ton3.2Ton5.7Ton7.8Ton9Ton9Ton12.3Ton15.5Ton17.7Ton21.9Ton25.1Ton28.3Ton31.5Ton34.7Ton Note 1: JCD1200FL (air-cooled) model does not require cooling water. 2: Product updates will cause changes in parameters, please contact technology for details. 3: For details of customized models, please communicate with technology. Features: Heat pump heat recovery system, 100% total heat utilization.Moisture content below 10%, reduction over 80%.Ultra-low operating cost per ton of 180-degree electricity.50 degrees low temperature operation, safer.0 emissions, no odorous emissions, condensate can be discharged straight, more hygienic without dust.Applicapable Industries: Advantages:Safe & High EfficiencyLow temperature drying process below 80°C, fully suitable for sludge drying in municipal, printing and dyeing, papermaking, petrochemical and other industries.The system is safe to operate without hidden dangers of explosion and does not require nitrogen flushing operation.During the drying process, the oxygen content is
