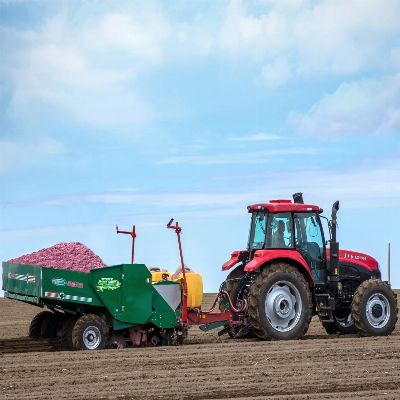

Large Area Mechanized Potato Seeder Machine Big High Efficiency Potato Precision Planter

  Product Description       The 2CM-4B potato planter is a large-scale machine suitable for large area mechanized potato planter. With high complexity, high precision, high adaptability and other advanced characteristics. Product ParametersCode No.2CM-4BDitcher Type Double-sided Plow Point Structural Formpull-typeRidge TypeDisc TypeMachine Size(L*W*H) :4130×3880×1770mmWorking Efficiency1.2hm2/hMachine Weight:2600kgSowing Speed3~6 km/hPower Required:73.5~132.3kwSeed Box Volume4000LRow Spacing700~900mmFertilizer Box Volume1000LWorking Rows4 Ridge 4 rowsPesticide Box Volume700LWorking Width2800~3600mmTransmission TypeGround wheel chain drivePotato Weight15~80g/Wheel TypeHerringbone Rubber TyrePlanter Typescoop formWheel Diameter810mmPlanter Quantity30×4Width of Ground Wheel205mmDistance Between Plants170~440mmSprayer Heads4×8Advantages1. Sowing efficiency is high. Can be a one-time completion of ditching, planting, ridge, fertilization, spraying and a series of operations.2. High precision sowing. Adopting advanced scoop type seed planter device and vibration, shaking, chain tensioning technology, low seed leakage rate, reseed rate, high sowing accuracy.3. Strong adaptability. Planting depth and width, ridge width and row spacing can be adjusted according to planting habits in different regions. 4. Advanced potato ridge control technology: the existing potato planter mostly uses plough type supporting soil plate or disk type supporting soil plate, its Angle is not easy to adjust, irregular ridge shape. The potato planter broke through the inherent mode and developed the disc type ridge loader, which expanded the application range, making the applicable row spacing higher than the current 600-700mm to 700-900mm, and the suitable plant spacing higher than the current 200-350mm to 170-440mm. The ridge shape control is more diversified and can meet different agronomic requirements.5. Pesticide spraying uniform. The spraying system uses PTFE nozzle with higher degree of atomization, not only its Angle can be adjusted, but also the traditional spraying after planting potato is changed to front and back spraying, so that the coverage is more tight.Company Profile/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
