Wheat Barley Rye Sorghum Grain Fine Seed Cleaner Machine Seed Cleaner

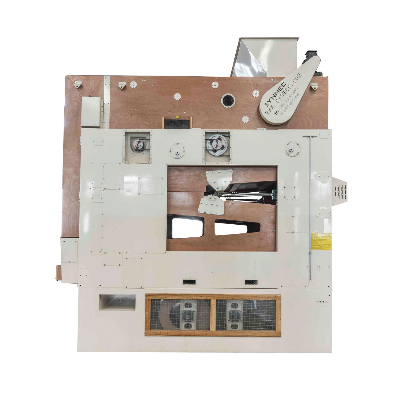

Wheat Sorghum Grain Seed Fine Cleaner MachineIntroduction of Wheat Rye Sorghum etc. Grain Seed Fine Cleaner MachineSYNMEC Fine Seed Cleaner has been developed for high quality fine cleaning of malting barley, seed grain, legumes, grass and garden seeds. The machine's efficient screen system with its accurately matched stroke and frequency, is complemented by  highly developed pre- and after suction system. Two air lifting blowers at the bottom of the machine ensure unrivalled air cleaning and grading.1. Pre-suctionWith finely adjustable suction intake directly under the feed gate for effective removal of fine particles.2. Screens(L x W = 800 x 1250 mm) can be employed as sieves, sorters or graders, and are effectively kept clean by rubber balls in newly developed ball boxes. It is not necessary to take out the ball boxeswhen changing screens.3. Eccentric drive system for screen boatsSupplied standard with fixed speed alternative frequency regulation.4. After suctionLight particles are sucked out of the product flow on the air screen and lead through the air lifting channel to the expansion chamber, from where it is extracted by screw conveyor.5. Two air lifting blowersEnsure a homogenous airflow and support the after suction considerably. Delivered with frequency regulation. The system is used to separate light grains with low germination, from the final product, by blowing the light product up into the airlifting channel, and separated in the expantion chamber the husk will be lifted in to the after suction blower, and the light kernels will fall in to the middling outlet.6. Outlet for middling product7. False air intakes (2 pcs.)For adjustment of air quantity in both the pre- and after suction systems.7. AdjustmentRemote control of integral motor for shaker feeder, airlifting unit, pre suction, after suction and air velocity. The adjustment of the above is placed in a small control box, which is placed on the cleaner.Features of Wheat Rye Sorghum etc. Grain Seed Fine Cleaner MachineEasy and quick operation and screen changing. (This Fine Seed Cleaner can, in a few minutes, be converted to different cleaning programmes, e.g.: Beans, lupine seed, maize Oats, wheat Rye grass, Red fescue Rape, peas, lentils)The screen boxes are made of wear resistant plywood, which is approved for foodScreen cleaning with special rubber ballsBuilt-in light.Durable surface of the machine owing to high-quality powder lacquering  Specifications of 5X-5 and 5X-12 Fine Cleaner Machine  Model5X-55X-12Dimension(L×W×H)3200×1920×3600 mm3790×1940×4060 mmOverall weight3250 kg3600 kgRated capacity5 t/h12 t/hOverall air volume8200 m312520 m3External air blower4-72N0-6A, 7.5 kW4-79N0-6A, 11kwVibration sieve motor(gear motor)2.2 kWBack lifting system motor3.0 kWFeeding motor1.5 kWTotal Power6.7 kWAir Blower Typecentrifuge air blowerTop air blower Rotary speed4-79NO6A,1400 r/minBack lifting air blower Rotary speed100~1000 r/minScreen Typepiercing screenScreen Dimension (L×W)800×1250 mmFrequency300(80~400) times/minAmplitude30 mmLayers and number4 layers,7 pieces5 layers,15 piecesScreen number and typelevel 11 piece round hole3 pieces slot holelevel 22 pieces slot hole3 pieces slot holelevel 32 pieces slot hole3 pieces slot holelevel 42 pieces slot hole3 pieces slot holelevel 5null3 pieces slot holeParameters of 5X-12 Fine Cleaner Machine  Capacity based on 15% H2O:8% incoming up to 2% under 2.2 mmWheat, Rye, Sorghum and Malted Barley 12.0 t/hOats, Maize, white Rice 9.0 t/hSoya, Peas, Rape, Coffee 9.0 t/hPaddy rice 7.0 t/hSunflower, roasted Coffee 4.5-5.0 t/hRye grass, clover 1.8-2.2 t/hDimensions:Machine height (without fan) 3545 mmMachine length 3870 mmMachine width 1855 mmHeight, standard inlet hopper 532 mmScreen area: 15.0 m²Square outlet pipes:(Adapter to round available)a) from screens 160 x 160 mmb) from expansion chambers 240 x 240 mmMotors: (standard):Screen 2.2 kWLifting air fans (integral) 2.2 kWShaker feeder (integral) 0.75 kWTop fan (optional) 7.5 kWAir volume:Pre- and after suction 11000 m³Total weight of cleaner:Without top fan 3655 kgFreight volume 28 m³  Similar Products   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
