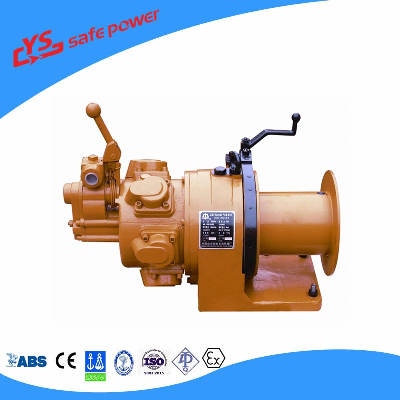

Jqh 10*24 Air Hoist Used for Lifting Heavy Cargo

JQHSY-10*24 air winch is a kind of manual operated single drum type air winch. It adopts compressed air as its power to drive air motor, driving drum via two grades gears ( to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo. Considering security, this winch adopts disc air brake. This winch Is widely used for drilling, marines, minings, engineering sites, etc to pull heavy cargo,and especially fit for dragging drill pipes and casing pipes.Techincal ParametersItemsParametersMeasurement  UnitRated Working Pressure0.6-0.7MpaRated Pull Force10KNRated Cable Speed24m/minPiston Air Motor ModelTMH4-----Piston Air Motor Rated Power4kWPiston Air Motor Air Consumption130L/SDrum Diameter175mmDrum Width198mmDrum Wheel Diameter290mmCable Diameter10mmCable Storage50mAir Inlet Diameter1inConfiguration722*342*530mmWeight160KGFeatures1. Small in size, light in weight, high in mobility.2. Flexible to perform clockwise and anti-clockwise rotation.3. High practicability with anti-explosive function, especially stable and reliable inInflammable, explosive, wet, damp, and other extremely working environments.4. High starting torque enables start with load.5. Anti-overload function.6. Equipped with disc air brake function, which enables the winch automatically in brakeWhen stops.7. ISO, API, CCS approved./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
