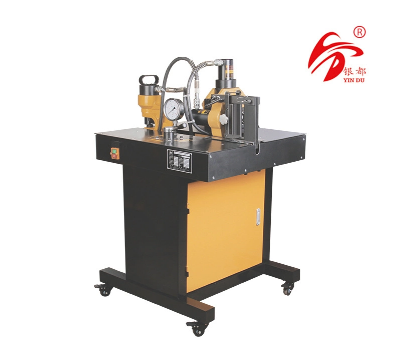

Top Selling Copper Busbar Processing Machine (VHB-150)

Copper Busbar Processing Machine VHB-150VHB-150 Copper Busbar Processing Machine Functionsused for cutting,punching,bending Input valtage/control valtageSingle phase 50HZ,220V Rating working oil pressure700kgf/cm²(over pressure safety valve set) Outlet force of busbar cutter150Ton Busbar cutting capabilitycopper/aluminum bar 150mm*12mm Outlet force of puncher31ton Distance between hole center and busbar edge95mm Punching capability-copper bar/aluminum barΦ6mm-Φ20.5mm,Max thickness:10mm Standard assembled punching diesΦ10.5mm,Φ13.8mm,Φ17.5mm,Φ20.5mm Outlet force of bender16Ton Horizontal bending capability150mm*12mm Weight182kg Dimension of moveable workbenchL830mm*W830mm*H1310mmFeatures&functions:1. This machine is the light of advanced products, and combined with the actual order to improve efficiency and ensure the operational safety requirements designed equipment.2. Suitable for transmission and distribution in a large workshop and site construction work, and power distribution equipment and switchgear and other electrical appliances factory use.3. High flexibility, small size and strong function, high production capacity and efficiency.4. Low-noise sound, beautiful and will not have finished processing the work environment pollution.5.Multiple functions could make producing busbar easily and quickly.Note:1.VHB-150 consist of 4 tools2. Hydraulic cutting tool CWC-1503. Hydraulic bending tool CB-150D4. Hydraulic punch tool CH-605. Hydraulic electric pump ZCB-700D/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
